LEV ODS15-IDW

SMART WB BLE PIR, 15A ON/OFF, 120-277V

Page Loading...
LEVITON MFG CO.
SMART WB BLE PIR, 15A ON/OFF, 120-277V

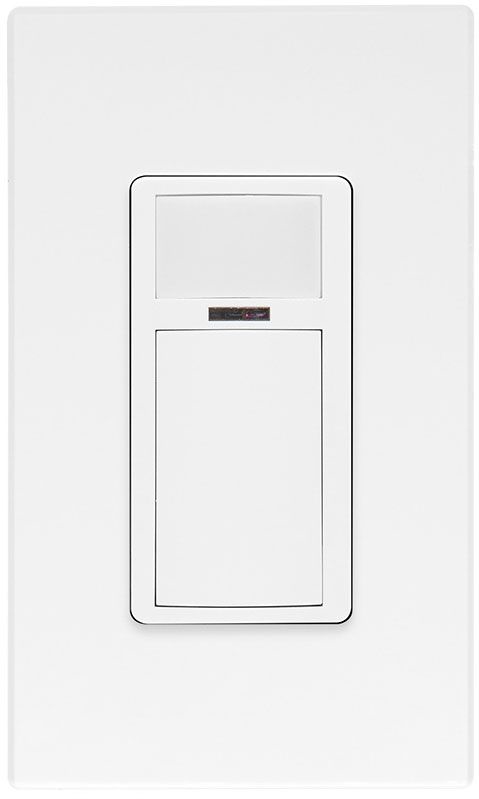

Mouse over image to zoom, click to enlarge

Description:
SMART WB BLE PIR, 15A ON/OFF, 120-277V

UPC:  07847701022

Part Number: ODS15-IDW

UNSPSC: 45111808

Status:  UNKNOWN

Retail Price:  $85.01 / EA
Your Price:  $67.76 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo ODS15-IDW
Additional Information Operating Temperature Rating 0 to 50 Deg C; Switching Type 1 Pole; Excludes Wall Plate; LED Color Red
Application Commercial;Small Office, Conference Room, Classroom, Stock Rooms, Lounge, Private Restroom, Warehouses, Commercial Area
Approval UL, CSA, FCC, NOM
Area Coverage 2100 Sq Ft
Base Price 0.0000
Brand Name LEVITON;Decora [R]
Catalog Number ODS15-IDW
Commerce Sector Construction Materials
Commodity Code 74310
Commodity Description Lighting Occupancy Sensors
CountryOfOrigin CN
DDCATEGORY 578
Directory CIS
Environmental Conditions Operating Temperature (0 to +50 DEG C);Storage Temperature (-10 to +85 DEG C);Humidity (20% to 90% Non-Condensing)
Families 578
Family Description Motion Sensing Devices
Field Of View 180 Degree
Finish White
Frequency Rating 50/60 Hz
Image Location * Image
Industry ELX
InvoiceDescription SMART WB BLE PIR, 15A ON/OFF, 120-277V;WHT IR OCCUPANCY SNSR
Item Number 01022
Load Rating 1800 W at 120 VAC (Incandescent), 1800 VA at 120 VAC, 4000 VA at 277 V (Fluorescent), 1/4 HP at 120 VAC (Motor)
Load Type Incandescent/Fluorescent/Motor
Long Description OCCUPANCY SENSOR, MOTION DETECTOR, SELF-ADAPTIVE TYPE; 1.75 INCH W X 1.85 INCH D X 4.06 INCH H SIZE; WHITE FINISH; UL, CSA, FCC, NOM APPROVAL
MSDS Form Number *
Model Series ODS15
Mounting Wall
Noun *
Power Consumption 100 @ 120V;280 @ 277V
Product Description SMART WB BLE PIR, 15A ON/OFF, 120-277V
Product Keywords WEBREADY
Product Name Lighting controls
ProductLine LEV
Sensor Type Passive Infrared
Size 46 H x 1.75 W x 1.83 D IN;1.75 Inch W x 1.85 Inch D x 4.06 Inch H
Special Features "Fits in Standard Wallbox and Replaces Single-Pole Wall Switch, Ground Connection Required, Gangable with other Units, Low-Profile Design Eliminates Obtrusive ""scanning-device"" Look, Elegant Decora Wallplates Complement any Interior for Sleek Aesthetics, U"
Standard UL Listed;CSA Certified (24);FCC Regulations;NOM Certified
Sub Brand Decora
Supply Voltage 120/230/277 VAC
Time Delay 30 Sec to 20 Min
Type Occupancy Sensor;Single-Pole Switch;Motion Detector, Self-Adaptive
UNSPSC 45111808
UPC 07847701022
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120/277 VAC at 60 Hz
