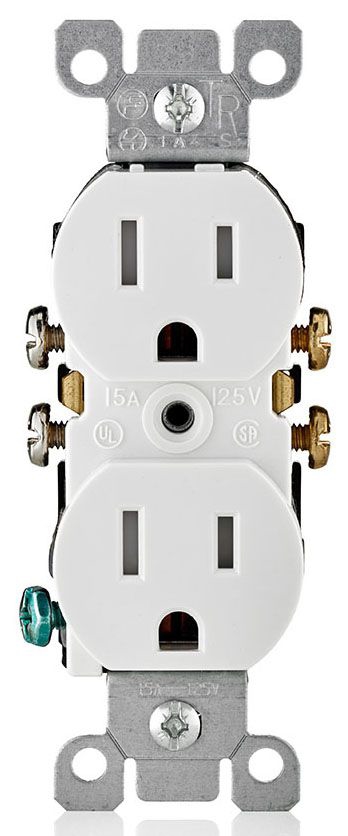

LEV T5320-W

WH REC DUP TR 2POLE 3WI 15A125V

Page Loading...
LEVITON MFG CO.
WH REC DUP TR 2POLE 3WI 15A125V

Mouse over image to zoom, click to enlarge

Description:
WH REC DUP TR 2POLE 3WI 15A125V

UPC:  07847738161

Part Number: T5320-W

UNSPSC: 39111503

Status:  UNKNOWN

Retail Price:  $3.21 / EA
Your Price:  $1.94 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo T5320-W
Amperage Rating 15 AMP
Application Residential
Approval UL 498, CSA C22.2, NOM, NEC
Base Price 0.0000
Catalog Number T5320-W
Color White
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Compatibility Straight Blade Device
Configuration NEMA 5-15R
Constructional Feature Tamper/Impact Resistant
CountryOfOrigin US
Current Rating 15 Amp
DDCATEGORY 573
Directory CIS
Families 573
Family Description Receptacles & Surge Protectors
Grade Residential
Ground Type Grounding
Height 4.20 IN
Image Location * Image
Industry ELX
InvoiceDescription WH REC DUP TR 2POLE 3WI 15A125V;WHT NEMA5-15R DPLX RCPT
Item Number 38161
Lamp Included No
Length 1.31 IN
Long Description STRAIGHT BLADE RECEPTACLE, DUPLEX, TRADITIONAL TYPE; THERMOPLASTIC MATERIAL; WHITE COLOR; NEMA 5-15R CONFIGURATION; 3 WIRE(S); RESIDENTIAL GRADE; UL 498, CSA C22.2, NOM, NEC APPROVAL; 125 VOLT VOLTAGE RATING; 15 AMP CURRENT RATING; GROUNDING; 2 POLE(S)
MSDS Form Number *
Material Thermoplastic
Model T5320
Mounting Screw
Noun *
Number Of Poles 2
Number Of Wires 3
Product Description WH REC DUP TR 2POLE 3WI 15A125V
Product Keywords WEBREADY
Product Name Wall fixtures
ProductLine LEV
Socket Type 3 Pin 15 A
Special Features Straight Blade, Tamper-Resistant, 2-Year Limited Warranty
Standard UL\CSA Certified;2008 NEC Compliant;NEMA: 5-15R
Style Straight Blade
Type Duplex Receptacle;Duplex, Traditional
UNSPSC 39111503
UPC 07847738161
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125 V;125 Volt
Width 0.98 IN
Wiring Side, Quickwire Push-In

Resources

CatalogNumber T5320-W
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
