| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | 64003J |
| AC Voltage Rating | 600 V |
| Additional Information | RoHS Compliant; Overall Dimension 10 Inch Length x 10.5 Inch Width x 3.62 Inch Height; Short Circuit Current Rating 200 Kiloamp; Fuse Installation Method Clip-In; Clip Material Tin Plated Copper; Installation Mounting Type Direct Screw; Connector Torque R |
| Amperage Rating | 400 A |
| Approval | UL 512/4248, CSA Class 6225 |
| Base Price | 0.0000 |
| Catalog Number | 64003J |
| Class | Class J |
| Clip Type | Spring Reinforced |
| Commerce Sector | Construction Materials |
| Commodity Code | 61310 |
| Commodity Description | Fuseholders & Fuseblocks |
| Connection | Box Side-Clip |
| DC Voltage Rating | 600 V |
| DDCATEGORY | 585 |
| Directory | CIS |
| Families | 585 |
| Family Description | Fuseholders & Fuseblocks |
| Fuse Current Rating | 400 Amp |
| Fuse Type | Class J |
| Fuse Voltage Rating | 600 Volt AC/DC |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Fuse Block 600VAC 600VDC Class J 400A 3-Pole Box Side-Clip;400A 600V FUSE BLOCK |
| Item Number | 75897 |
| Long Description | FUSE BLOCK, STANDARD TYPE; PHENOLIC MATERIAL; 250 TO 1000 KCMIL WIRE SIZE; UL 512/4248, CSA CLASS 6225 APPROVAL; 3 POLE(S); SIDE CLIP TERMINAL TYPE; CLASS J FUSE TYPE; 400 AMP FUSE CURRENT RATING; 600 VOLT AC/DC FUSE VOLTAGE RATING |
| MSDS Form Number | * |
| Material | Phenolic |
| Maximum Operating Temperature | 80 C |
| Mounting | Direct Screw Mount |
| Noun | * |
| Number Of Poles | 3 |
| Phase | 3 |
| Product Description | 400A 600V FUSE BLOCK |
| Product Keywords | WEBREADY |

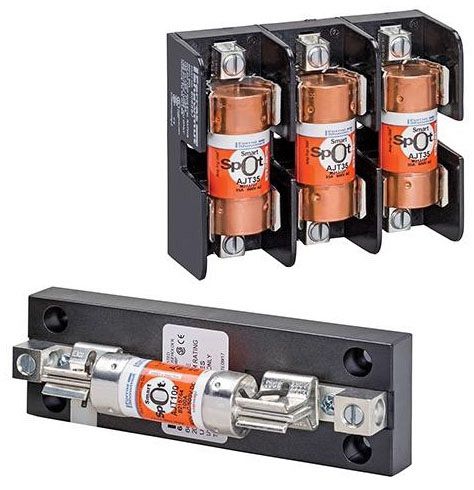

| Product Name | Fuse holder |
| ProductLine | MFP |
| Size | 10 x 10.5 x 3.62 in |
| Special Features | Class J Blocks (600V) use with AJT, A4J, HSJ |
| Standard | All class J fuse blocks meet the requirements of UL4248 (formerly UL512) UL listed Guide IZLT, File E52283 CSA certified class 6225, File 32169 |
| Terminal Type | Side Clip |
| Type | UL/CSA Fuse Bases;Standard |
| UNSPSC | 39121624 |
| UPC | 78200175897 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 600 VAC |
| Wire Size | 250 to 1000 KCMIL |
