| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | A15QS100-4 |
| Additional Information | RoHS Compliant; Mounting Type Bolt-In; Material Glass-Melamine Laminate (Body), Tin Plated Brass (Terminal); Application Electrochemical Rectifier |
| Amperage Rating | 100 A |
| Application | Protection of AC/DC drives, UPS, Rectifiers and other equipment of 150 volts or less |
| Approval | UL |
| Base Price | 0.0000 |
| Brand Name | Ferraz Shawmut;Amp-Trap[R] |
| Catalog Number | A15QS100-4 |
| Characteristics | Fast Acting, High Speed |
| Commerce Sector | Construction Materials |
| Commodity Code | 61140 |
| Commodity Description | Semicond,Rectifier,Hi-Voltage Fuses |
| Connection | Blade |
| CountryOfOrigin | MX |
| Current Rating | 100 Amp |
| DDCATEGORY | 583 |
| Diameter | 1.13 Inch |
| Directory | CIS |
| Families | 583 |
| Family Description | Semicond,Rectifier,Hi-Voltage Fuses |

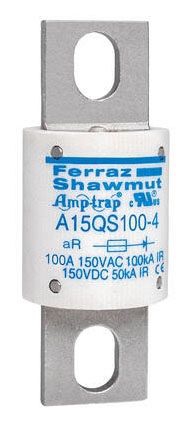

| Image Location | * Image |
| Industry | ELX |
| Interrupting Rating | 200 Kiloamp (AC) |
| InvoiceDescription | SC FUSE 150V 100A QS BLADE;100A SEMICOND FUS |
| Item Number | 28766 |
| Length | 2.66 Inch |
| Long Description | FUSE, ROUND, SEMICONDUCTOR TYPE; 2.66 INCH; UL APPROVAL; 150 VOLT AC/DC VOLTAGE RATING; 1.13 INCH DIAMETER; 200 KILOAMP (AC) INTERRUPTING RATING; 100 AMP CURRENT RATING; BLADE TERMINAL TYPE; FAST ACTING, HIGH SPEED CHARACTERISTICS; AMP-TRAP[R] BRAND |
| MSDS Form Number | * |
| Model | A15QS |
| Mounting | Bolted |
| Noun | * |
| Product Description | 100A SEMICOND FUS |
| Product Keywords | WEBREADY |
| Product Name | Semiconductor fuse |
| ProductLine | MFP |
| Special Features | Low It minimizes damage to protected components on short circuit. Controlled arc voltage reduces stress to circuit components during fuse clearing. Choice of mounting types provides options for unique termination requirements |
| Standard | UL Recognized Component Guide JFHR8, File E60314 Some Ratings RoHS Compliant |
| Terminal Type | Blade |
| Type | North American Round Style;Round, Semiconductor |
| UNSPSC | 39121628 |
| UPC | 78200128766 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 150 VAC;150 Volt AC/DC |
