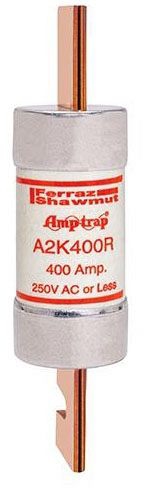

| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | A2K400R |
| Additional Information | Body Material Polyester/Glass-Melamine Laminate; Contact Material Tin Plated Copper; Mounting Type Clip; Application Loadcenter, Panelboard, Switchboard, Bus Duct, Feeder Circuit, Non-Inductive Load and Lightning Circuit |
| Amperage Rating | 400 A |
| Application | Load centers Panelboards Switchboards Bus Duct Feeder Circuits Non-inductive Loads Lighting Circuits |
| Approval | UL 248/248-12, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Ferraz Shawmut;Amp-Trap[R] |
| Catalog Number | A2K400R |
| Characteristics | Fast Acting |
| Class | RK-1 |
| Commerce Sector | Construction Materials |
| Commodity Code | 61130 |
| Commodity Description | Current Limiting Fuses |
| Connection | Blade |
| CountryOfOrigin | MX |
| Current Rating | 400 Ampere |
| DDCATEGORY | 582 |
| Diameter | 2-1/16 Inch |
| Directory | CIS |
| Families | 582 |
| Family Description | Current Limiting Fuses |
| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 200 kA |
| Interrupting Rating | 200 Kiloampere (AC), 20 Kiloampere (DC) |
| InvoiceDescription | 250V 400A RK1 FUSE;250V RK1 FUSE |
| Item Number | 91536 |
| Length | 8-5/8 Inch |
| Long Description | POWER FUSE, CLASS RK1 TYPE; 8-5/8 INCH; UL 248/248-12, CSA C22.2 APPROVAL; 250 VAC/VDC VOLTAGE RATING; 2-1/16 INCH DIAMETER; 200 KILOAMPERE (AC), 20 KILOAMPERE (DC) INTERRUPTING RATING; 400 AMPERE CURRENT RATING; BLADE TERMINAL TYPE |
| MSDS Form Number | * |
| Model | A2K-R |
| Mounting | Clip |
| Noun | * |
| Product Description | 250V RK1 FUSE |
| Product Keywords | WEBREADY |
| Product Name | Cartridge fuses |
| ProductLine | MFP |
| Special Features | Rejection style design prevents replacement by other fuse classes Fiberglass body provides dimensional stability in harsh industrial environments Easy-to-Read imprint label for quick recognition and replacement High degree of current-limitation for low peak let-thru current |
| Standard | UL Listed to Standard 248-12, File E2137 CSA Certified to Standard C22.2, No. 248.12 DC tested to UL 248 limits (Mersen Self-Certified) |
| Terminal Type | Blade |
| Type | North American Power Fuses;Class RK1 |
| UNSPSC | 39121606 |
| UPC | 78200191536 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 250 VAC;250 VAC/VDC |
