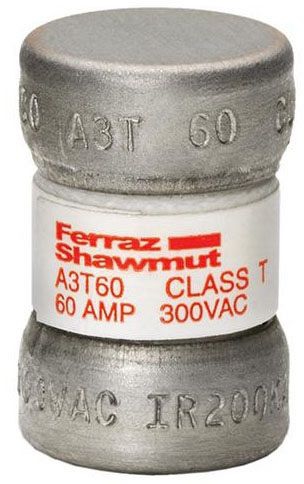

| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | A3T60 |
| AC Voltage Rating | 300 V |
| Additional Information | RoHS Compliant; Mounting Type Clip; Material Glass Melamine Laminate (Body), Copper (Terminal); Application Loadcenter, Panel Board, Switch Board, Circuit Breaker, Metering Center |
| Amperage Rating | 60 A |
| Application | Load centers Panelboards Switchboards Circuit breakers Metering centers |
| Approval | UL 248/248-15, CSA C22.2 |
| Base Price | 0.0000 |
| Body Material | GMG |
| Brand Name | Amp-Trap[R] |
| Catalog Number | A3T60 |
| Characteristics | Fast Acting |
| Class | Class T |
| Commerce Sector | Construction Materials |
| Commodity Code | 61200 |
| Commodity Description | Small Dimension Fuses |
| Connection | Ferrule |
| Connection Material | Copper |
| CountryOfOrigin | MX |
| Current Rating | 60 Amp |
| DC Voltage Rating | 160 V |
| DDCATEGORY | 281 |
| Diameter | 0.56 Inch |
| Directory | CIS |
| Families | 281 |
| Family Description | Small Dimension Fuses |
| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 200 kA |
| Interrupting Rating | 200 Kiloamp (AC), 50 Kiloamp (DC) |
| InvoiceDescription | Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 60A Ferrule;CLASS T FUSE |
| Item Number | 89014 |
| Length | 0.88 Inch |
| Long Description | POWER FUSE, CLASS T TYPE; 0.88 INCH; UL 248/248-15, CSA C22.2 APPROVAL; 300 VOLT AC, 160 VOLT DC VOLTAGE RATING; 0.56 INCH DIAMETER; 200 KILOAMP (AC), 50 KILOAMP (DC) INTERRUPTING RATING; 60 AMP CURRENT RATING; FERRULE TERMINAL TYPE |
| MSDS Form Number | * |
| Model | A3T |
| Mounting | Clip |
| Noun | * |
| Product Description | CLASS T FUSE |
| Product Keywords | WEBREADY |
| Product Name | Cartridge fuses |
| ProductLine | MFP |
| Size | 0.88 x 0.56 in |
| Special Features | Extremely current-limiting for low peak let-thru current Unique dimensions prevent replacement by other fuse classes Blade-stamped catalog numbers for permanent identification Small physical size for greater design flexibility |
| Standard | UL listed to standard 248-15 File E2137 CSA certified to standard C22.2 no. 248.15 DC listed to UL standard 248 |
| Terminal Type | Ferrule |
| Type | Class T |
| UNSPSC | 39121606 |
| UPC | 78200189014 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 300 VAC;300 Volt AC, 160 Volt DC |
