| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | A480R24R-1HE |
| AC Voltage Rating | 4800 V |
| Additional Information | CURRENT LIMITING; WITH HOOKEYE |
| Application | Short circuit protection of medium voltage motors and motor controllers |
| Approval | UL |
| Base Price | 0.0000 |
| Body Material | Epoxy |
| Brand Name | AMP-TRAP[R] |
| Catalog Number | A480R24R-1HE |
| Commerce Sector | Construction Materials |
| Commodity Code | 61130 |
| Commodity Description | Current Limiting Fuses |
| Connection | Ferrule |
| Connection Material | Silver-Plated Copper |
| Current Rating | 450 AMPERE |
| DDCATEGORY | 582 |
| Designated Size | 24R |
| Diameter | 3 INCH |
| Directory | CIS |
| Families | 582 |
| Family Description | Current Limiting Fuses |
| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 50 kA |
| Interrupting Rating | 100 KILOAMPERE (ASYMMETRICAL) AT 5500 V, 63 KILOAMPERE (SYMMETRICAL) AT 5500 V, 1910 AMPERE |
| InvoiceDescription | R-Rated MV Fuse 4800VAC 24R Mounting: Ferrule Style: Hookeye Visual Indicator;4800V R RATED FS |
| Item Number | 80150 |
| Length | 16-1/8 INCH |
| Long Description | MEDIUM VOLTAGE FUSE, R RATED TYPE; 16-1/8 INCH; UL APPROVAL; 4.8 KV VOLTAGE RATING; 3 INCH DIAMETER; 100 KILOAMPERE (ASYMMETRICAL) AT 5500 V, 63 KILOAMPERE (SYMMETRICAL) AT 5500 V, 1910 AMPERE INTERRUPTING RATING; 450 AMPERE CURRENT RATING |
| MSDS Form Number | * |
| Model | A480R |
| Mounting | Clip |
| Noun | * |
| Number Of Barrels | 2 |
| Product Description | 4800V R RATED FS |
| Product Keywords | WEBREADY |

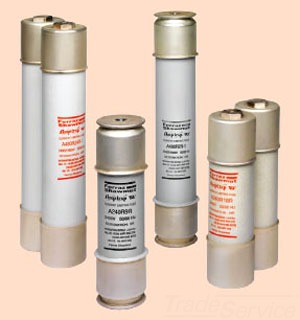

| Product Name | Medium voltage fuse |
| ProductLine | MFP |
| Size | 16.13 x 6.41 x 6.41 in |
| Special Features | "The Amp-Trap and 9F60 R-Rated fuses are UL Recognized Ferrule mounting for standard clips and interchangeability with other brands of fuses Current-limiting for superior equipment protection Metal embossed catalog number and manufacturing date for lasting identification Hookeye for non load-break isolation by hookstick: On the 4.8kV an optional hookeye mounted in the factory is available On all other 3"" barrels if a hookeye is required, use the operating eye 9F61AAW612 Blown-fuse indicator to give positive identification of open fuse Amp trap: 3"" Barrel 2 lb tripped force - 0.50 Inch 9F60: 0.125 lb tripped force 0.20 Inch" |
| Standard | Amp-Trap: UL File E93367 9F60: UL File E191980 |
| Terminal Type | FERRULE |
| Type | Back-Up R-Rated Ferrule Mount Fuses for Motor Protection;R RATED |
| Type Of Indicators | Visual Indicator |
| UNSPSC | 39121626 |
| UPC | 78200180150 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 4800 VAC;4.8 KV |
