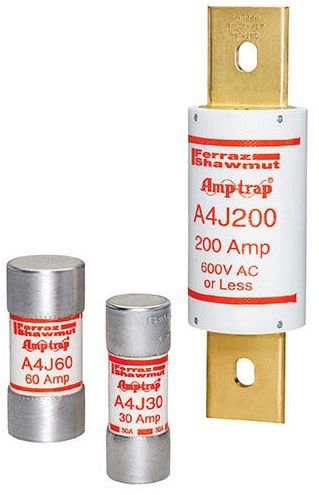

| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | A4J200 |
| AC Voltage Rating | 600 V |
| Additional Information | Body Style Cylindrical, Rejection; Body Material Polyester, Glass-Melamine Laminate; Contact Material Tin Plated Copper, Silver Plated Copper, Brass Alloy; Mounting Type Clip; Application Capacitor, Load Center, Panel Board, Switch Board, Bus Duct, Feeder |
| Amperage Rating | 200 A |
| Application | Capacitors Load centers Panelboards Switchboards Bus duct Feeder circuits Circuit breakers Lighting, heating, and general loads |
| Approval | UL 248/248-8, CSA C22.2 |
| Base Price | 0.0000 |
| Body Material | GMG |
| Brand Name | Amp-Trap[R] |
| Catalog Number | A4J200 |
| Characteristics | Fast Acting |
| Class | Class J |
| Commerce Sector | Construction Materials |
| Commodity Code | 61130 |
| Commodity Description | Current Limiting Fuses |
| Connection | Blade |
| Connection Material | Brass Alloy |
| CountryOfOrigin | MX |
| Current Rating | 200 Amp |
| DC Voltage Rating | 300 V |
| DDCATEGORY | 582 |
| Diameter | 1-5/8 Inch |
| Directory | CIS |
| Families | 582 |
| Family Description | Current Limiting Fuses |
| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 200 kA |
| Interrupting Rating | 200 Kiloamp (AC), 100 Kiloamp (DC) |
| InvoiceDescription | Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 200A Blade;600V CLASS J FUSE |
| Item Number | 96037 |
| Length | 5-3/4 Inch |
| Long Description | POWER FUSE, CLASS J TYPE; 5-3/4 INCH; UL 248/248-8, CSA C22.2 APPROVAL; 600 VOLT AC, 300 VOLT DC VOLTAGE RATING; 1-5/8 INCH DIAMETER; 200 KILOAMP (AC), 100 KILOAMP (DC) INTERRUPTING RATING; 200 AMP CURRENT RATING; BLADE TERMINAL TYPE |
| MSDS Form Number | * |
| Model | A4J |
| Mounting | Clip |
| Noun | * |
| Product Description | 600V CLASS J FUSE |
| Product Keywords | WEBREADY |
| Product Name | Cartridge fuses |
| ProductLine | MFP |
| Size | 5.75 x 1.62 in |
| Special Features | High current limitation for low peak let-thru current Unique dimensions prevent replacement by other fuse classes Fiberglass body provides dimensional stability in harsh industrial environments Easy-to-read imprint label for quick recognition and replacement |
| Standard | UL listed to standard 248-8 File E2137 CSA certified to standard C22.2 no. 248.8 DC listed to UL 248 IEC 269-2-1 |
| Terminal Type | Blade |
| Type | Class J |
| UNSPSC | 39121606 |
| UPC | 78200196037 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 600 VAC;600 Volt AC, 300 Volt DC |
