| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |

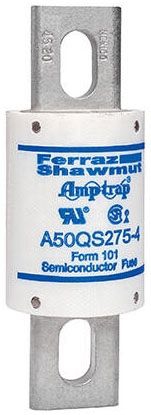

| MfgPartNo | A50QS275-4 |
| AC Voltage Rating | 500 V |
| Amperage Rating | 275 A |
| Application | Protection of 500V or less motor drives, UPS, inverters, etc. |
| Base Price | 0.0000 |
| Case | GMG |
| Connection | Blade |
| CountryOfOrigin | MX |
| DC Voltage Rating | 500 V |
| DDCATEGORY | 583 |
| Families | 583 |
| Family Description | Semicond,Rectifier,Hi-Voltage Fuses |
| InvoiceDescription | High Speed Fuse Amp-Trap A50QS 500VAC 500VDC 275A Blade;SEMICOND FUSE |
| Mounting | Bolted |
| Product Description | SEMICOND FUSE |
| Product Keywords | WEBREADY |
| Product Name | Semiconductor fuse |
| ProductLine | MFP |
| Size | 4.34 x 1.5 in |
| Special Features | Lowest I2t for greatest protection of semiconductor circuits Low watts loss for cooler operation Superior cycling ability gives an equipment design advantage State-of-the-art protection for 500V equipment Ultra compact sizes allow down-sizing of existing equipment |
| Standard | UL recognized component UL File 60314 AC: UL guide no. JFHR2 DC Tested to UL standard 198L parameters (70-1200A) CSA Certified LR12636 |
| Type | Round Body High-Speed Fuse-Links AC Protection |
| UNSPSC | 39121628 |
| UPC | 78200194779 |
| Voltage Rating | 500 V |
