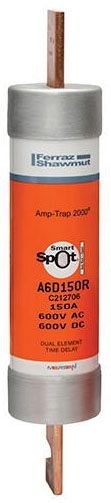

| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | A6D150R |
| Additional Information | RoHS Compliant; Mounting Type Clip; Material Fiberglass (Body), Tin Plated Copper (Terminal); Application Motor, Safety Switch, Transformer, Disconnect, Control Panel, All General Purpose Circuit |
| Amperage Rating | 150 A |
| Application | Motors Safety Switches Transformers Disconnects Control Panels All General-purpose Circuits |
| Approval | UL 248/248-12, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Ferraz Shawmut;Amp-Trap 2000[R], SmartSpot[R] |
| Catalog Number | A6D150R |
| Characteristics | Time Delay |
| Class | RK-1 |
| Commerce Sector | Construction Materials |
| Commodity Code | 61130 |
| Commodity Description | Current Limiting Fuses |
| Connection | Blade |
| CountryOfOrigin | MX |
| Current Rating | 150 Amp |
| DDCATEGORY | 582 |
| Diameter | 1-13/16 Inch |
| Directory | CIS |
| Families | 582 |
| Family Description | Current Limiting Fuses |
| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 200 kA |
| Interrupting Rating | 200 Kiloamp (AC), 100 Kiloamp (DC) |
| InvoiceDescription | 600V 150A RK1 TD FUSE;600V RK1 TD FUSE |
| Item Number | 99216 |
| Length | 9-5/8 Inch |
| Long Description | POWER FUSE, CLASS RK1 TYPE; 9-5/8 INCH; UL 248/248-12, CSA C22.2 APPROVAL; 600 VOLT AC/DC VOLTAGE RATING; 1-13/16 INCH DIAMETER; 200 KILOAMP (AC), 100 KILOAMP (DC) INTERRUPTING RATING; 150 AMP CURRENT RATING; BLADE TERMINAL TYPE |
| MSDS Form Number | * |
| Model | A6D-R |
| Mounting | Clip |
| Noun | * |
| Product Description | 600V RK1 TD FUSE |
| Product Keywords | WEBREADY |
| Product Name | Cartridge fuses |
| ProductLine | MFP |
| Special Features | "Solid-state SmartSpot indicator Time-delay for motor starting and transformer inrush currents without nuisance opening 300kA interrupting rating, self-certified (UL witnessed test Extremely current-limiting for low peak let-thru current Easy 2-to-1 selectivity for prevention of nuisance shut downs and ""black outs"" Rejection-style design prevents replacement errors (when used with recommended fuse blocks) High-visibility orange label gives instant recognition Reduced inventory by taking the place of Class RK5, K, and H fuses Metal embossed date and catalog number for easier traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching" |
| Standard | UL Listed to Standard 248-12, File E2137 DC Listed to UL Standard 248 CSA Certified to Standard C22.2, No. 248.12 |
| Sub Brand | Amp-Trap 2000, SmartSpot |
| Terminal Type | Blade |
| Type | North American Power Fuses;Class RK1 |
| Type Of Indicators | SmartSpot |
| UNSPSC | 39121606 |
| UPC | 78200199216 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 600 VAC;600 Volt AC/DC |
