| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | A70P35-4 |
| Additional Information | RoHS Compliant; Mounting Type Bolted; Material GMG (Body), Tin Plated Copper (Terminal); Application Protection of DC Drive, UPS, Reduced Voltage Starter |
| Amperage Rating | 35 A |
| Application | Protection of 700V or less DC drives, UPS, inverters, reduced voltage starters, etc. |
| Approval | UL |
| Base Price | 0.0000 |
| Brand Name | Ferraz Shawmut;Amp-Trap[R] |
| Catalog Number | A70P35-4 |
| Characteristics | Very Fast Acting, High Speed |
| Commerce Sector | Construction Materials |
| Commodity Code | 61140 |
| Commodity Description | Semicond,Rectifier,Hi-Voltage Fuses |
| Connection | Bolted |
| CountryOfOrigin | MX |
| Current Rating | 35 Amp |
| DDCATEGORY | 583 |
| Diameter | 1 Inch |
| Directory | CIS |
| Families | 583 |
| Family Description | Semicond,Rectifier,Hi-Voltage Fuses |
| Image Location | * Image |
| Industry | ELX |
| Interrupting Rating | 65 Kiloamp (AC) |
| InvoiceDescription | SC FUSE 700V 35A P BLADE;700V SEMICOND FUSE |
| Item Number | 94713 |
| Length | 4.38 Inch |
| Long Description | SEMICONDUCTOR PROTECTION FUSE, ROUND, SEMICONDUCTOR TYPE; 4.38 INCH; UL APPROVAL; 700 VOLT AC, 650 VOLT DC VOLTAGE RATING; 1 INCH DIAMETER; 65 KILOAMP (AC) INTERRUPTING RATING; 35 AMP CURRENT RATING; BOLTED TERMINAL TYPE |
| MSDS Form Number | * |
| Model | A70P |
| Mounting | Bolt |
| Noun | * |
| Product Description | 700V SEMICOND FUSE |
| Product Keywords | WEBREADY |

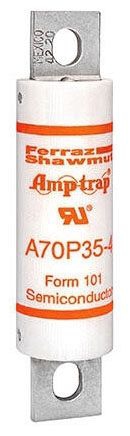

| Product Name | Semiconductor fuse |
| ProductLine | MFP |
| Special Features | Low I2t minimizes damage to protected components on short circuit Controlled arc voltage reduces stress to circuit components during fuse clearing Choice of mounting types helps in equipment design |
| Standard | UL Recognized Component AC: Guide No. JFHR2 DC: Tested to UL Standard 198L parameters Some Ratings RoHS Compliant |
| Terminal Type | Bolted |
| Type | North American Round Style;Round, Semiconductor |
| UNSPSC | 39121628 |
| UPC | 78200194713 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 700 VAC;700 Volt AC, 650 Volt DC |
