| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | A70Q100-4 |
| Additional Information | RoHS Compliant; Mounting Type Bolted; Material GMG (Body), Tin Plated Brass (Terminal); Application Protection of Inverter and Other Equipment |
| Amperage Rating | 100 A |
| Application | Protection of inverters and other equipment requiring the best AC or DC protection in this voltage range |
| Approval | UL |
| Base Price | 0.0000 |
| Brand Name | Ferraz Shawmut;Amp-Trap[R] |
| Catalog Number | A70Q100-4 |
| Characteristics | Extremely Fast Acting, High Speed |
| Commerce Sector | Construction Materials |
| Commodity Code | 61140 |
| Commodity Description | Semicond,Rectifier,Hi-Voltage Fuses |
| Connection | Bolted |
| CountryOfOrigin | MX |
| Current Rating | 100 Amp |
| DDCATEGORY | 583 |
| Diameter | 1.22 Inch |
| Directory | CIS |
| Families | 583 |
| Family Description | Semicond,Rectifier,Hi-Voltage Fuses |
| Image Location | * Image |
| Industry | ELX |
| Interrupting Rating | 64 Kiloamp (AC) |
| InvoiceDescription | SC FUSE 700V 100A Q BLADE;700V SEMICOND FUSE |
| Item Number | 14094 |
| Length | 4.37 Inch |

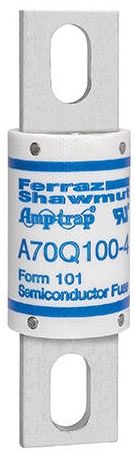

| Long Description | SEMICONDUCTOR PROTECTION FUSE, ROUND, SEMICONDUCTOR TYPE; 4.37 INCH; UL APPROVAL; 700 VOLT AC, 650 VOLT DC VOLTAGE RATING; 1.22 INCH DIAMETER; 64 KILOAMP (AC) INTERRUPTING RATING; 100 AMP CURRENT RATING; BOLTED TERMINAL TYPE |
| MSDS Form Number | * |
| Model | A70Q |
| Mounting | Bolt |
| Noun | * |
| Product Description | 700V SEMICOND FUSE |
| Product Keywords | WEBREADY |
| Product Name | Semiconductor fuse |
| ProductLine | MFP |
| Special Features | Lowest I2t of any fuse in this voltage rating for best overall protection 700V AC, 650V DC rating allows protection of greater variety of circuits Solid fill technology for extra reliability in performance |
| Standard | UL Recognized Component AC: Guide No. JFHR2 DC: Tested to UL Standard 198L Parameters RoHS Compliant |
| Terminal Type | Bolted |
| Type | North American Round Style;Round, Semiconductor |
| UNSPSC | 39121628 |
| UPC | 78200114094 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 700 VAC;700 Volt AC, 650 Volt DC |
