| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | A70QS12-14F |
| Additional Information | WITHOUT STRIKER |
| Amperage Rating | 12 A |
| Application | Small inverters, UPS systems, Solid State Relays, motor drives and similar 700V or less equipment |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | AMP-TRAP. |
| Catalog Number | A70QS12-14F |
| Commerce Sector | Construction Materials |
| Commodity Code | 61140 |
| Commodity Description | Semicond,Rectifier,Hi-Voltage Fuses |
| Connection | Ferrule |
| CountryOfOrigin | TN |
| Current Rating | 12 AMPERE |
| DDCATEGORY | 583 |
| Designated Size | 14 X 51 |
| Directory | CIS |
| Families | 583 |
| Family Description | Semicond,Rectifier,Hi-Voltage Fuses |
| Image Location | * Image |
| Industry | ELX |
| Interrupting Rating | 200 KILOAMPERE (AC), 100 KILOAMPERE (DC) |
| InvoiceDescription | 12A 700V FF SEMICOND FUSE;700V SEMICOND FUSE |
| Item Number | 14199 |
| Long Description | EUROPEAN STYLE SEMICONDUCTOR PROTECTION FUSE, 14 MM DIA X 51 MM L SIZE; UL, CSA APPROVAL; 690 VAC (IEC), 700 VDC VOLTAGE RATING; 200 KILOAMPERE (AC), 100 KILOAMPERE (DC) INTERRUPTING RATING; 12 AMPERE CURRENT RATING; 14 X 51 DESIGNATED SIZE |
| MSDS Form Number | * |
| Model | A70QS |
| Mounting | Clip |
| Noun | * |
| Product Description | 700V SEMICOND FUSE |
| Product Keywords | WEBREADY |

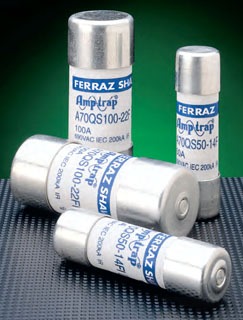

| Product Name | Semiconductor fuse |
| ProductLine | MFP |
| Size | 14 MM DIA X 51 MM L |
| Special Features | International 14 x 51mm (2 In x 9/16 In) and 22 x 58mm (2-1/4 In x 13/16 In) sizes for worldwide acceptance Ferrule mount for design versatility Very low I2t for improved semiconductor protection 690V IEC rated, tested at 760VAC, can be used up to 750VAC in U.S. 700VDC rated for dc protection of equipment with L/R <= 10ms/c Superior cycling ability for longer life on difficult cyclic loading applications |
| Standard | UL Recognized Component CSA Certified IEC 269-4 Compliance |
| Terminal Type | FERRULE |
| Type | North American Round Style |
| UNSPSC | 39121628 |
| UPC | 78200114199 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 690 VAC;690 VAC (IEC), 700 VDC |
