| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | A70QS250-4 |
| Additional Information | RoHS Compliant; Mounting Type Bolted; Material GMG (Body), Tin Plated Brass (Terminal); Application Protection of 700 Volt or Less Motor Drive, UPS, Inverter |
| Amperage Rating | 250 A |
| Application | Protection of motor drives, UPS, inverters at 700V or less |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Ferraz Shawmut;Amp-Trap[R] |
| Catalog Number | A70QS250-4 |
| Characteristics | High Speed |
| Commerce Sector | Construction Materials |
| Commodity Code | 61140 |
| Commodity Description | Semicond,Rectifier,Hi-Voltage Fuses |
| Connection | Bolted |
| CountryOfOrigin | MX |
| Current Rating | 250 Amp |
| DDCATEGORY | 583 |
| Diameter | 1.5 Inch |
| Directory | CIS |
| Families | 583 |
| Family Description | Semicond,Rectifier,Hi-Voltage Fuses |
| Image Location | * Image |
| Industry | ELX |
| Interrupting Rating | 50 Kiloamp (AC) |
| InvoiceDescription | 94832-FUSE,FORM 101;700V SEMICOND FUSE |
| Item Number | 94832 |
| Length | 5.09 Inch |

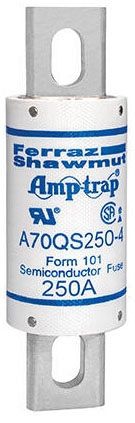

| Long Description | SEMICONDUCTOR PROTECTION FUSE, ROUND, SEMICONDUCTOR TYPE; 5.09 INCH; UL, CSA APPROVAL; 700 VOLT AC/DC VOLTAGE RATING; 1.5 INCH DIAMETER; 50 KILOAMP (AC) INTERRUPTING RATING; 250 AMP CURRENT RATING; BOLTED TERMINAL TYPE; HIGH SPEED CHARACTERISTICS |
| MSDS Form Number | * |
| Model | A70QS |
| Mounting | Bolt |
| Noun | * |
| Product Description | 700V SEMICOND FUSE |
| Product Keywords | WEBREADY |
| Product Name | Semiconductor fuse |
| ProductLine | MFP |
| Special Features | Very Low I2t for improved protection of equipment Superior cycling ability for long, reliable life on high cyclic loading Low watts loss for cooler operation 700V AC/DC rating gives greater design versatility Ultra compact sizes allow down-sizing of existing equipment |
| Standard | UL Recognized Component, AC/DC AC: Guide No. JFHR2 DC: Tested to UL Standard 198L Parameters CSA Certified File LR 12636 Some Ratings RoHS Compliant |
| Terminal Type | Bolted |
| Type | North American Round Style;Round, Semiconductor |
| UNSPSC | 39121628 |
| UPC | 78200194832 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 700 VAC;700 Volt AC/DC |
