| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | A70QS700-4 |
| AC Voltage Rating | 700 V |
| Additional Information | Body Style Cylindrical; Body Material Glass-Melamine Laminate; Contact Material Tin Plated Brass/Copper; Mounting Type Bolt-In; Application Inverter, Motor Drive and UPS System |
| Amperage Rating | 700 A |
| Application | Protection of 700V or less motor drives, UPS, inverters, etc. |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Amp-Trap[R] |
| Case | GMG |
| Catalog Number | A70QS700-4 |
| Characteristics | High Speed |
| Commerce Sector | Construction Materials |
| Commodity Code | 61140 |
| Commodity Description | Semicond,Rectifier,Hi-Voltage Fuses |
| Connection | Blade |
| CountryOfOrigin | MX |
| Current Rating | 700 Amp |
| DC Voltage Rating | 700 V |
| DDCATEGORY | 583 |
| Diameter | 2.5 Inch |
| Directory | CIS |
| Families | 583 |
| Family Description | Semicond,Rectifier,Hi-Voltage Fuses |

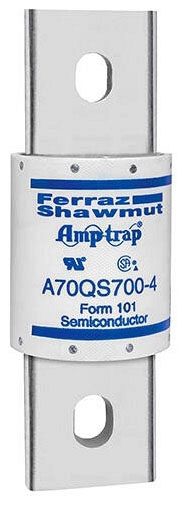

| Image Location | * Image |
| Industry | ELX |
| Interrupting Rating | 200 Kiloamp (AC), 100 Kiloamp (DC) |
| InvoiceDescription | High Speed Fuse Amp-Trap A70QS 700VAC 700VDC 700A Bolted Blade;700V SEMICOND FUSE |
| Item Number | 94688 |
| Length | 7.09 Inch |
| Long Description | SEMICONDUCTOR PROTECTION FUSE, ROUND, SEMICONDUCTOR TYPE; 7.09 INCH; UL, CSA APPROVAL; 700 VOLT AC/DC VOLTAGE RATING; 2.5 INCH DIAMETER; 200 KILOAMP (AC), 100 KILOAMP (DC) INTERRUPTING RATING; 700 AMP CURRENT RATING; BLADE TERMINAL TYPE |
| MSDS Form Number | * |
| Model | A70QS |
| Mounting | Bolted |
| Noun | * |
| Product Description | 700V SEMICOND FUSE |
| Product Keywords | WEBREADY |
| Product Name | Semiconductor fuse |
| ProductLine | MFP |
| Size | 7.09 x 2.5 in |
| Special Features | Very Low I2t for improved protection of equipment Superior cycling ability for long, reliable life on high cyclic loading Low watts loss for cooler operation 700V AC/DC rating gives greater design versatility Ultra compact sizes allow down-sizing of existing equipment |
| Standard | UL recognized component, AC/DC UL file E60314 AC: guide no. JFHR2 DC: tested to UL standard 198L parameters (35-800A) CSA certified File LR 12636 |
| Terminal Type | Blade |
| Type | Round Body High-Speed Fuse-Links AC Protection;Round, Semiconductor |
| UNSPSC | 39121628 |
| UPC | 78200194688 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 700 V;700 Volt AC/DC |
