| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |

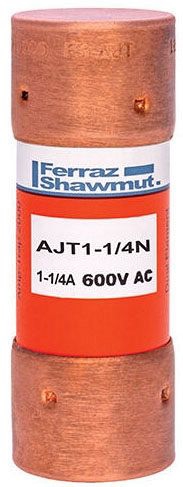

| MfgPartNo | AJT1-1/4N |
| AC Voltage Rating | 600 V |
| Amperage Rating | 1.25 A |
| Application | Motor circuits Mains Feeders Branch circuits Lighting, heating & general loads Transformers Control panels Circuit breaker back-up Bus duct Load centers |
| Base Price | 0.0000 |
| Body Material | GMG |
| Class | Class J |
| Connection | Ferrule |
| Connection Material | Tin-Plated Copper |
| CountryOfOrigin | MX |
| DDCATEGORY | 582 |
| Families | 582 |
| Family Description | Current Limiting Fuses |
| Interrupt Rating | 200 kA |
| InvoiceDescription | Fuse AJT - Class J - Time-delay 600VAC 500VDC 1.25A Ferrule;1.25A 600V POWER FUSE |
| Mounting | Clip |
| Product Description | 1.25A 600V POWER FUSE |
| Product Keywords | WEBREADY |
| Product Name | Cartridge fuses |
| ProductLine | MFP |
| Size | 2.25 x 0.81 in |
| Special Features | Non-indicating or solid state SmartSpot visual blown fuse indicator Time-delay for motor starting and transformer inrush 300kA interrupting rating - self-certified, UL witnessed tests Extremely current-limiting for low peak let-thru current Most current-limiting UL class fuse Recommended for Arc Flash energy reduction Small footprint requires less mounting space and allows smaller, more economical fuse blocks Easy 2-to-1 selectivity for prevention of nuisance shutdowns Unique Class J dimensions prevent replacement errors High-visibility orange label gives instant brand recognition Metal-embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching Optional EI indicator/switch mount for AJT70 to 600 open fuse indication |
| Standard | AJT (1-600): UL listed to standard 248-8 File E2137 DC listed to UL standard 248 CSA certified to standard C22.2 No. 248.8 IEC 60269-2-1 AJT (70-600) EI: UL listed DC tested to UL standard 248 |
| Type | Class J |
| UNSPSC | 39121606 |
| UPC | 78200149797 |
