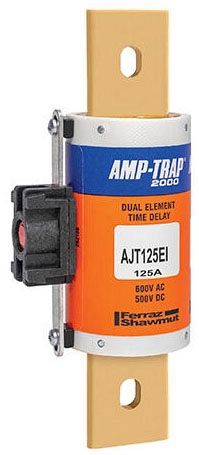

| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | AJT125EI |
| AC Voltage Rating | 600 V |
| Additional Information | CURRENT LIMITING; FIBERGLASS TUBE; SOLID STATE SMART STOP INDICATOR; WITH ADD ON SWITCH |
| Amperage Rating | 125 A |
| Application | Motor circuits Mains Feeders Branch circuits Lighting, heating & general loads Transformers Control panels Circuit breaker back-up Bus duct Load centers |
| Approval | UL 198L, UL 248-8, CSA C22.2 |
| Base Price | 0.0000 |
| Body Material | GMG |
| Brand Name | AMP-TRAP 2000[R] |
| Catalog Number | AJT125EI |
| Characteristics | TIME DELAY |
| Class | Class J |
| Commerce Sector | Construction Materials |
| Commodity Code | 61130 |
| Commodity Description | Current Limiting Fuses |
| Connection | Blade |
| Connection Material | Brass |
| CountryOfOrigin | MX |
| Current Rating | 125 AMPERE |
| DDCATEGORY | 582 |
| Diameter | 1-5/8 INCH |
| Directory | CIS |
| Families | 582 |
| Family Description | Current Limiting Fuses |
| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 200 kA |
| Interrupting Rating | 200 KILOAMPERE (AC), 100 KILOAMPERE (DC) |
| InvoiceDescription | Fuse AJT - Class J - Time-delay 600VAC 500VDC 125A Blade EI Indicator;600V CLASS J TD FUSE |
| Item Number | 96152 |
| Length | 3.22 INCH |
| Long Description | POWER FUSE, CLASS J TYPE; 3.22 INCH; UL 198L, UL 248-8, CSA C22.2 APPROVAL; 600 VAC/500 VDC VOLTAGE RATING; 1-5/8 INCH DIAMETER; 200 KILOAMPERE (AC), 100 KILOAMPERE (DC) INTERRUPTING RATING; 125 AMPERE CURRENT RATING; BLADE TERMINAL TYPE |
| MSDS Form Number | * |
| Model | AJT |
| Mounting | Clip or Bolted |
| Noun | * |
| Product Description | 600V CLASS J TD FUSE |
| Product Keywords | WEBREADY |
| Product Name | Cartridge fuses |
| ProductLine | MFP |
| Size | 5.75 x 1.62 in |
| Special Features | Non-indicating or solid state SmartSpot visual blown fuse indicator Time-delay for motor starting and transformer inrush 300kA interrupting rating - self-certified, UL witnessed tests Extremely current-limiting for low peak let-thru current Most current-limiting UL class fuse Recommended for Arc Flash energy reduction Small footprint requires less mounting space and allows smaller, more economical fuse blocks Easy 2-to-1 selectivity for prevention of nuisance shutdowns Unique Class J dimensions prevent replacement errors High-visibility orange label gives instant brand recognition Metal-embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching Optional EI indicator/switch mount for AJT70 to 600 open fuse indication |
| Standard | AJT (1-600): UL listed to standard 248-8 File E2137 DC listed to UL standard 248 CSA certified to standard C22.2 No. 248.8 IEC 60269-2-1 AJT (70-600) EI: UL listed DC tested to UL standard 248 |
| Terminal Type | BLADE |
| Type | Class J;CLASS J |
| Type Of Indicators | EI Indicator |
| UNSPSC | 39121606 |
| UPC | 78200196152 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 600 VAC;600 VAC/500 VDC |
