| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | AJT60 |
| Additional Information | RoHS Compliant; Mounting Type Clip; Material Fiberglass (Body), Tin Plated Copper (Terminal); Application Motor Circuit, Mains, Feeder, Branch Circuit, Lightning, Heating, General Load, Transformer, Control Panel, Circuit Breaker Back-Up, Bus Duct, Loadce |
| Amperage Rating | 60 A |
| Application | Motor Circuits Mains Feeders Branch Circuits Lighting Heaters Transformers Control Panels Circuit Breaker Back-up Bus Duct Load Centers |
| Approval | UL 248/248-8, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Ferraz Shawmut;Amp-Trap 2000[R], SmartSpot[R] |
| Catalog Number | AJT60 |
| Characteristics | Time Delay |
| Class | J |
| Commerce Sector | Construction Materials |
| Commodity Code | 61130 |
| Commodity Description | Current Limiting Fuses |
| Connection | Ferrule |
| CountryOfOrigin | MX |
| Current Rating | 60 Amp |
| DDCATEGORY | 582 |
| Diameter | 1-1/16 Inch |
| Directory | CIS |
| Families | 582 |
| Family Description | Current Limiting Fuses |

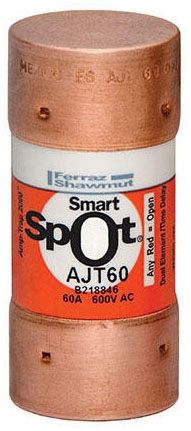

| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 200 kA |
| Interrupting Rating | 200 Kiloamp (AC), 100 Kiloamp (DC) |
| InvoiceDescription | J TD FUSE 600V 60A AJT;600V CLASS J TD FUSE |
| Item Number | 96238 |
| Length | 2-3/8 Inch |
| Long Description | POWER FUSE, CLASS J TYPE; 2-3/8 INCH; UL 248/248-8, CSA C22.2 APPROVAL; 600 VOLT AC, 500 VOLT DC VOLTAGE RATING; 1-1/16 INCH DIAMETER; 200 KILOAMP (AC), 100 KILOAMP (DC) INTERRUPTING RATING; 60 AMP CURRENT RATING; FERRULE TERMINAL TYPE |
| MSDS Form Number | * |
| Model | AJT |
| Mounting | Clip |
| Noun | * |
| Product Description | 600V CLASS J TD FUSE |
| Product Keywords | WEBREADY |
| Product Name | Cartridge fuses |
| ProductLine | MFP |
| Special Features | Solid-state SmartSpot indicator Time-delay for motor starting and transformer inrush 300kA interrupting rating, self-certified (UL witnessed) Extremely current-limiting for low peak let-thru current Most current-limiting UL class fuse Small footprint requires less mounting space and allows smaller, more economical fuse blocks Easy 2-to-1 selectivity for prevention of nuisance shutdowns Unique Class J dimensions prevent replacement errors High-visibility orange label gives instant recognition Metal embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching Optional EI blown fuse indicator/switch available |
| Standard | UL Listed to Standard 248-8, File E2137 DC Listed to UL Standard 248 CSA Certified to Standard C22.2, No. 248.8 IEC 269-2-1 |
| Sub Brand | Amp-Trap 2000, SmartSpot |
| Terminal Type | Ferrule |
| Type | North American Power Fuses;Class J |
| Type Of Indicators | SmartSpot |
| UNSPSC | 39121606 |
| UPC | 78200196238 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 600 VAC;600 Volt AC, 500 Volt DC |
