MFP ATDR20

600V CC TD FUSE

Page Loading...
MERSEN USA Newburyport-MA, LLC

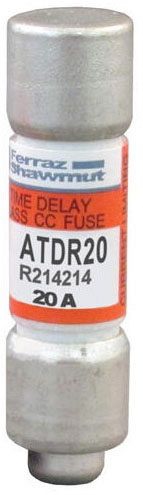

600V CC TD FUSE

Mouse over image to zoom, click to enlarge

Description:
600V CC TD FUSE

UPC:  78200190868

Part Number: ATDR20

UNSPSC: 39121609

Status:  UNKNOWN

Retail Price:  $93.95 / EA
Your Price:  $26.91 / EA


Quantity  EA

Specifications

Manufacturer Name MERSEN USA Newburyport-MA, LLC
MfgPartNo ATDR20
Additional Information Mounting Type Clip; Material Glass Melamine Laminate (Body), Tin Plated Copper (Contact); Application Small Motor, Contactor, Lighting, Heating, General Load, Branch Circuit Protection
Amperage Rating 20 A
Application Small Motors Contactors Lighting Heaters General Loads
Approval UL 248/248-4, CSA C22.2
Base Price 0.0000
Brand Name Ferraz Shawmut;Amp-Trap 2000[R]
Catalog Number ATDR20
Characteristics Time Delay
Class CC
Commerce Sector Construction Materials
Commodity Code 61200
Commodity Description Small Dimension Fuses
Connection Ferrule
CountryOfOrigin MX
Current Rating 20 Amp
DDCATEGORY 281
Diameter 0.41 Inch
Directory CIS
Families 281
Family Description Small Dimension Fuses
Image Location * Image
Industry ELX
Interrupt Rating 200 kA
Interrupting Rating 200 Kiloamp (AC), 100 Kiloamp (DC)
InvoiceDescription CC TD FUSE 600V 20A ATDR;600V CC TD FUSE
Item Number 90868
Length 1.5 Inch
Long Description MIDGET FUSE, CLASS CC REJECTION TYPE; 1.5 INCH; UL 248/248-4, CSA C22.2 APPROVAL; 600 VOLT AC, 300 VOLT DC VOLTAGE RATING; 0.41 INCH DIAMETER; 200 KILOAMP (AC), 100 KILOAMP (DC) INTERRUPTING RATING; 20 AMP CURRENT RATING; FERRULE TERMINAL TYPE
MSDS Form Number *
Model ATDR
Mounting Clip
Noun *
Product Description 600V CC TD FUSE
Product Keywords WEBREADY
Product Name Midget fuses
ProductLine MFP
Special Features Time-delay for motor starting inrush currents without nuisance opening Highly current-limiting for low peak let-thru current Improved cycling ability for frequent motor starts/stops without nuisance fuse opening Rejection-style design prevents replacement errors (when used with recommended fuse blocks) High-visibility orange label ensures instant recognition, simplifies replacement Metal embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching and optimum current-limitation
Standard UL Listed to Standard 248-4, File E2137 DC Listed to UL Standard 248 CSA Certified to Standard C22.2, No. 248.4
Sub Brand Amp-Trap 2000, SmartSpot
Terminal Type Ferrule
Type North American Power Fuses;Class CC Rejection
UNSPSC 39121609
UPC 78200190868
Vendor Name MERSEN (FORMERLY FERRAZ SHAWMUT INC)
Vendor Number 782001
Vendor Short Name MFZ
Voltage Rating 600 VAC;600 Volt AC, 300 Volt DC

Resources

CatalogNumber ATDR20
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
