| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | ATMR25 |
| AC Voltage Rating | 600 V |
| Additional Information | RoHS Compliant; Mounting Type Clip; Material Glass Melamine Laminate (Body), Tin Plated Copper (Contact); Application Contactor Circuit, Lighting, General Load, Branch Circuit Protection |
| Amperage Rating | 25 A |
| Application | Control circuits Lighting General loads Branch circuit protection |
| Approval | UL 248/248-4, CSA C22.2 |
| Base Price | 0.0000 |
| Body Material | GMG |
| Brand Name | Amp-Trap[R] |
| Catalog Number | ATMR25 |
| Characteristics | Fast Acting |
| Class | Class CC |
| Commerce Sector | Construction Materials |
| Commodity Code | 61200 |
| Commodity Description | Small Dimension Fuses |
| Connection | Ferrule |
| Connection Material | Tin-Plated Copper |
| Current Rating | 25 Amp |
| DC Voltage Rating | 600 V |
| DDCATEGORY | 281 |
| Diameter | 0.41 Inch |
| Directory | CIS |
| Families | 281 |
| Family Description | Small Dimension Fuses |

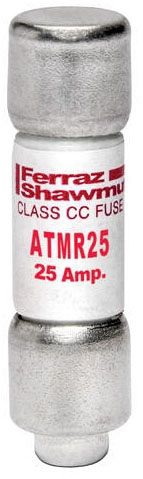

| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 200 kA |
| Interrupting Rating | 200 Kiloamp (AC), 100 Kiloamp (DC) |
| InvoiceDescription | Fuse ATMR - Class CC - Fast-Acting 600VAC 600VDC 25A Ferrule;600V SPCL PURP FUSE |
| Item Number | 90483 |
| Length | 1.5 Inch |
| Long Description | MIDGET FUSE, CLASS CC REJECTION TYPE; 1.5 INCH; UL 248/248-4, CSA C22.2 APPROVAL; 600 VOLT AC/DC VOLTAGE RATING; 0.41 INCH DIAMETER; 200 KILOAMP (AC), 100 KILOAMP (DC) INTERRUPTING RATING; 25 AMP CURRENT RATING; FERRULE TERMINAL TYPE |
| MSDS Form Number | * |
| Model | ATMR |
| Mounting | Clip |
| Noun | * |
| Product Description | 600V SPCL PURP FUSE |
| Product Keywords | WEBREADY |
| Product Name | Midget fuses |
| ProductLine | MFP |
| Size | 1.5 x 0.41 in |
| Special Features | Rejection-style design prevents replacement errors when used with recommended fuse blocks Versatile design for individual component and branch circuit protection |
| Standard | UL Listed to Standard 248-4 File E2137 CSA Certified to Standard C22.2 No. 248.4 DC listed to UL Standard 248 |
| Terminal Type | Ferrule |
| Type | Class CC;Class CC Rejection |
| UNSPSC | 39121609 |
| UPC | 78200190483 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 600 VAC;600 Volt AC/DC |
