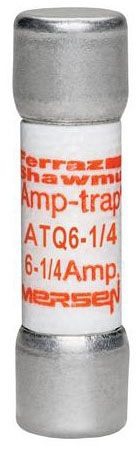

| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | ATQ6-1/4 |
| Additional Information | Body Material Glass-Melamine Laminate; Contact Material Tin Plated Copper; Mounting Type Clip; Application Supplemental Protection of Lighting, Solenoid, Motor and Transformer Circuit |
| Amperage Rating | 6.25 A |
| Application | Supplemental protection of lighting, solenoid, motor, and transformer circuits |
| Approval | UL 248-14, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Ferraz Shawmut;Amp-Trap[R] |
| Catalog Number | ATQ6-1/4 |
| Characteristics | 12 Sec Time Delay (at 200 Percent Rated Load) |
| Class | M |
| Commerce Sector | Construction Materials |
| Commodity Code | 61200 |
| Commodity Description | Small Dimension Fuses |
| Connection | Ferrule |
| CountryOfOrigin | MX |
| Current Rating | 6-1/4 Ampere |
| DDCATEGORY | 281 |
| Diameter | 0.41 Inch |
| Directory | CIS |
| Families | 281 |
| Family Description | Small Dimension Fuses |
| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 10 kA |
| Interrupting Rating | 10 Kiloampere |
| InvoiceDescription | 500V 6-1/4A TD MIDGET FUSE;500V TD MIDGET FUSE |
| Item Number | 90429 |
| Length | 1.5 Inch |
| Long Description | MIDGET FUSE, 1.5 INCH; UL 248-14, CSA C22.2 APPROVAL; 500 VAC VOLTAGE RATING; 0.41 INCH DIAMETER; 10 KILOAMPERE INTERRUPTING RATING; 6-1/4 AMPERE CURRENT RATING; FERRULE TERMINAL TYPE; 12 SEC TIME DELAY (AT 200 PERCENT RATED LOAD) CHARACTERISTICS |
| MSDS Form Number | * |
| Model | ATQ |
| Mounting | Clip |
| Noun | * |
| Product Description | 500V TD MIDGET FUSE |
| Product Keywords | WEBREADY |
| Product Name | Midget fuses |
| ProductLine | MFP |
| Special Features | Numerous ratings for a wide variety of applications up to 500VAC time-delay (12 seconds at 200% rating) for circuits with high inrush current Can be used with UltraSafe Fuseholders |
| Standard | UL Listed to Standard 248-14 CSA Certified to Standard C22.2 No. 248.14 RoHS Compliant on some ratings |
| Terminal Type | Ferrule |
| Type | Supplemental Protection |
| UNSPSC | 39121609 |
| UPC | 78200190429 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 500 VAC |
