| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | ATQR5-6/10 |
| Additional Information | Body Material Glass-Melamine Laminate; Contact Material Tin Plated Copper; Mounting Type Clip; Application Control Transformers, Solenoids, Inductive Loads, Lighting, Heating and General Purpose Loads |
| Amperage Rating | 5.6 A |
| Application | Control Transformers Solenoids Inductive Loads Lighting Heaters General-purpose Loads |
| Approval | UL 248-4, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Ferraz Shawmut;Amp-Trap[R] |
| Catalog Number | ATQR5-6/10 |
| Characteristics | Time Delay |
| Class | CC |
| Commerce Sector | Construction Materials |
| Commodity Code | 61200 |
| Commodity Description | Small Dimension Fuses |
| Connection | Ferrule |
| CountryOfOrigin | MX |
| Current Rating | 5-6/10 Ampere |
| DDCATEGORY | 281 |
| Diameter | 0.41 Inch |
| Directory | CIS |
| Families | 281 |
| Family Description | Small Dimension Fuses |
| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 200 kA |
| Interrupting Rating | 200 Kiloampere (AC)/100 Kiloampere (DC) |
| InvoiceDescription | CC TD FUSE 600V 5-6/10A ATQR;600V CC TD FUSE |
| Item Number | 90659 |
| Length | 1.5 Inch |

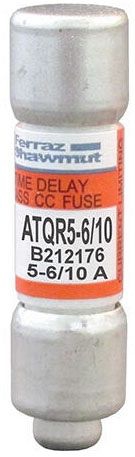

| Long Description | MIDGET FUSE, CLASS CC REJECTION TYPE; 1.5 INCH; UL 248-4, CSA C22.2 APPROVAL; 600 VAC, 300 VDC VOLTAGE RATING; 0.41 INCH DIAMETER; 200 KILOAMPERE (AC)/100 KILOAMPERE (DC) INTERRUPTING RATING; 5-6/10 AMPERE CURRENT RATING; FERRULE TERMINAL TYPE |
| MSDS Form Number | * |
| Model | ATQR |
| Mounting | Clip |
| Noun | * |
| Product Description | 600V CC TD FUSE |
| Product Keywords | WEBREADY |
| Product Name | Midget fuses |
| ProductLine | MFP |
| Special Features | Time-delay for control transformer inrush loads without nuisance opening Highly current-limiting for low peak let-thru current Rejection-style design prevents replacement errors (when used with recommended fuse blocks) High-visibility orange label ensures instant recognition, and simplifies replacement Metal embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching and high current-limitation |
| Standard | UL Listed to Standard 248-4, File E2137 DC Listed to UL Standard 248 CSA Certified to Standard C22.2, No. 248.4 Some ratings RoHS Compliant |
| Sub Brand | Amp-Trap 2000, SmartSpot |
| Terminal Type | Ferrule |
| Type | North American Power Fuses;Class CC Rejection |
| UNSPSC | 39121609 |
| UPC | 78200190659 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 600 VAC;600 VAC, 300 VDC |
