| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | MPDB67583 |
| Additional Information | RoHS Compliant; Lead-Free; Short Circuit Current Rating 100 Kiloamp; Connection Terminal Type Box to Box; Mounting Type Screw; Hex/Screw Size 7/16 Inch-20 TPI x 0.55 Inch (Primary), 5/16 Inch-24 TPI x 0.38 Inch (Secondary); Hole Diameter 0.44 Inch (Primar |
| Application | Cable splicing Splitting primary power into secondary circuits Fixed junction tap-off points |
| Approval | UL 1953, CSA |
| Base Price | 0.0000 |
| Brand Name | Ferraz Shawmut |
| Catalog Number | MPDB67583 |
| Commerce Sector | Construction Materials |
| Commodity Code | 61320 |
| Commodity Description | Power Blocks & Distribution Blocks |
| Conductor Material | Copper/Aluminum |
| Connection | Box To Box |
| Connector Material | Tin Plated Aluminum |
| CountryOfOrigin | MX |
| Cover Type | MPDBC6667, Dead Front Polycarbonate Snap-On Hinged Cover |
| Current Rating | 135 Amp (Aluminum), 175 Amp (Copper), 150 Amp (DLO) |
| DDCATEGORY | 586 |
| Directory | CIS |
| Families | 586 |
| Family Description | Power Blocks & Distribution Blocks |
| Housing Material | Glass Filled Polycarbonate |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | PWR DIS BLK AL INT 175A 3P 8;3P AL PWR DIST BLOK |
| Item Number | 45216 |

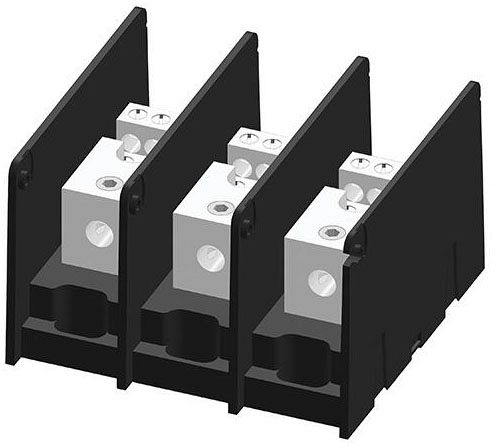

| Long Description | POWER DISTRIBUTION BLOCK, OPEN STYLE TYPE; 3.08 INCH LENGTH X 5.28 INCH WIDTH X 3.25 INCH HEIGHT SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL; UL 1953, CSA APPROVAL; 1000 VOLT AC/DC VOLTAGE RATING |
| MSDS Form Number | * |
| Model | MPDB |
| Noun | * |
| Number Of Poles | 3 |
| Number Of Primary Openings Per Pole | 1 |
| Number Of Secondary Openings Per Pole | 8 |
| Primary Opening Wire Size | 14 to 2/0 AWG, 14 to 1/0 AWG (DLO) |
| Product Description | 3P AL PWR DIST BLOK |
| Product Keywords | WEBREADY |
| Product Name | Crab joint |
| ProductLine | MFP |
| Secondary Opening Wire Size | 14 to 2 AWG, 14 to 4 AWG (DLO) |
| Size | 3.08 Inch Length x 5.28 Inch Width x 3.25 Inch Height |
| Special Features | Adder Poles: All sizes have optional adder poles for increased flexibility and ease-of-use. Adder poles can be stacked to form multi-pole units in the field witho ut the use of tools. Adder poles allow for customization of primary and secondary wire combinations. End barriers are also available for sale, catalog numbers can be found in the catalog number selection tables for each size block Wire Connectors: Standard aluminum and copper wire connectors are available. Aluminum connectors accept both AL or CU wire while copper connectors accept CU wire only. Connectors are all 1-piece tin-plated Insulators: Insulators are virtually unbreakable, made of glass-filled polycarbonate. Seethrough, hinged safety covers are optional and provide a greater degree of safety and shock resistance where required. Hinged covers can be installed without tools Spacings: 1 inch through air and 2 inches over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A Safety Covers: Polycarbonate safety covers provide dead-front protection. One cover is needed for each pole. Each cover has a test probe hole in the center for circuit checking. Covers are optional accessories and catalog numbers can be found in the catalog selection tables for each size block |
| Standard | UL Listed - File E352417 CSA Certified - Class 6228 01 RoHS Compliant |
| Type | Open-Style Power Distribution Blocks;Open Style |
| UNSPSC | 39121453 |
| UPC | 78200145216 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 600 VAC;1000 Volt AC/DC |
