MERSEN USA Newburyport-MA, LLC

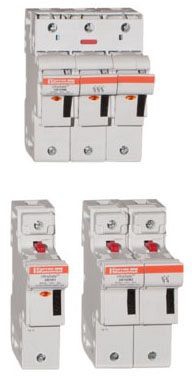

MODULAR FUSE HLDR

Mouse over image to zoom, click to enlarge

Description:
MODULAR FUSE HLDR

UPC:  78200131014

Part Number: Q331145

UNSPSC: 39121624

Status:  UNKNOWN

Retail Price:  $489.16 / EA
Your Price:  $191.27 / EA


Quantity  EA

Specifications

Manufacturer Name MERSEN USA Newburyport-MA, LLC
MfgPartNo Q331145
AC Voltage Rating 800 V
Amperage Rating 50 A
Application All circuits up to 750VAC for protection of motors, transformers, low voltage distribution, control circuits Non-load operation
Base Price 0.0000
Class IEC Cylindrical 14x51mm
Connection Pressure Plate
CountryOfOrigin TN
DC Voltage Rating 1000 V
DDCATEGORY 585
Families 585
Family Description Fuseholders & Fuseblocks
InvoiceDescription Fuse Holder 800VAC 1000VDC UL 14x51 3-Pole Microswitch IP20;MODULAR FUSE HLDR
Material Polyamide
Mounting DIN rail acc. EN 60715
Operating Temperature Maximum 140.00000 F
Operating Temperature Minimum -13.00000 F
Phase 3
Product Description MODULAR FUSE HLDR
Product Keywords WEBREADY
Product Name Fuse holder
ProductLine MFP
Size 3.01 x 2.09 x 4.36;76.5 x 53 x 110.8 in;mm
Special Features Finger safe Degree of protection: IP20 Optional visual blown fuse indicator & microswitch DIN rail mounting Modular design Lockable Multi-pole assembly kit available Sealable in closed and open position Plastic material UL94V2 mini Flame retardant materials with glow wire flammability index to 960C
Standard UL Recognized Component, UL4248, guide IZLT2, file E52283 CSA Certified C22.2, class 6225, file 32169 IEC 60269-2 and IEC 60947-3 RoHS Compliant Plastic material: NF 16101 & 16102 Requirement 2 Compliant
Type UL/CSA Fuse Holders
UNSPSC 39121624
UPC 78200131014
Voltage Rating 750 VAC

Resources

CatalogNumber Q331145
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
