| Manufacturer Name | MINERALLAC FASTENING SYSTEMS |
| MfgPartNo | 602 |
| Additional Information | Overall Dimension 1.2 Inch L x 2.2 Inch W x 2 Inch H; Clip Type Flange Clamp; Color Silver |
| Application | For use with Minerallac conduit hangers #0 to #5, bridal rings, and threaded rod.;Conduit Hangers #0 to #5, Bridle Rings and Threaded Rod |
| Base Price | 0.0000 |
| Brand Name | Minerallac;Minerallac [R] Traditional |
| Catalog Number | 602 |
| Clip Type | Flange Clamp |
| Color | Silver |
| Commerce Sector | Construction Materials |
| Commodity Code | 65400 |
| Commodity Description | Miscellaneous Fastening Hardware |
| CountryOfOrigin | USA |
| DDCATEGORY | 604 |
| Directory | CIS |
| Families | 604 |
| Family Description | Miscellaneous Fastening Hardware |
| Finish | Zinc Plated |
| Flange Width | "3/4""" |
| Gauge | 11 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 3/8 Univ Beam Clamp ZP;3/4 STL BEAM CLAMP |
| Item Number | 24602 |
| Length | 1.2 in |
| Load Capacity | 200 Lb |

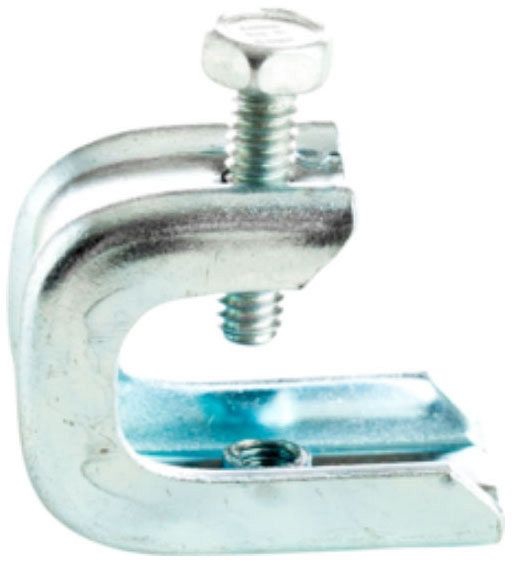

| Long Description | BEAM CLAMP, UNIVERSAL TYPE; STEEL MATERIAL; ZINC PLATED FINISH; 3/4 INCH MAX. JAW CAPACITY; CONDUIT HANGERS #0 TO #5, BRIDLE RINGS AND THREADED ROD APPLICATION; HARDENED PROCESS; 200 LB LOAD CAPACITY; 5/16 INCH-18 TPI X 1-3/8 INCH L SCREW SIZE |
| MSDS Form Number | * |
| Material | Steel |
| Material Of Construction | Steel |
| Maximum Clamp Diameter | "3/4""" |
| Maximum Jaw Capacity | 3/4 Inch |
| Maximum Load | 200 |
| Noun | * |
| Process | Hardened |
| Product Description | 3/4 STL BEAM CLAMP |
| Product Keywords | WEBREADY |
| Product Name | Beam clamps |
| ProductLine | MINRLAC |
| Rod Size | "3/8""" |
| Screw Size | 5/16 Inch-18 TPI x 1-3/8 Inch L |
| Set Screw | "5/16""-18 x 1-3/8""" |
| Size | "2.00"" x 1.20"" x 2.20""" |
| Special Features | Case hardened steel set screw tapped at an angle locks on beam. |
| Sub Brand | Minerallac Traditional |
| Supplied With Screw | Yes |
| Torque Rating | 60 IN-LBF |
| Type | Beam Clamp;Universal |
| UNSPSC | 31162905 |
| UPC | 78461024602 |
| Vendor Name | MINERALLAC COMPANY |
| Vendor Number | 784610 |
| Vendor Short Name | MINRLAC |
| Width | 2.2 in |
