NSI ISR-250

250 Mcm-6 Awg Polaris Insulated In-Line Splice

Page Loading...
NSI IND., INC.

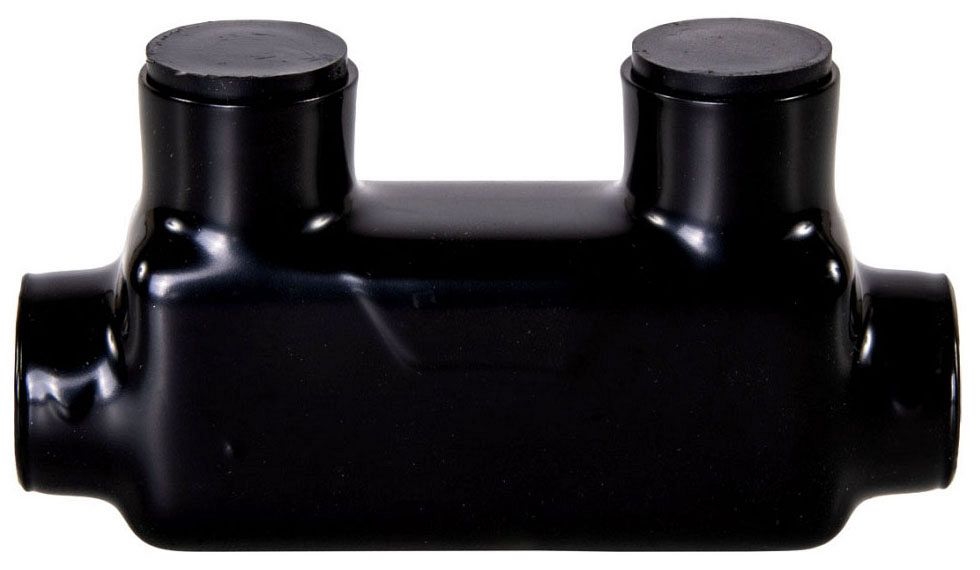

250 Mcm-6 Awg Polaris Insulated In-Line Splice

Mouse over image to zoom, click to enlarge

Description:
250 Mcm-6 Awg Polaris Insulated In-Line Splice

UPC:  66238195102

Part Number: ISR-250

UNSPSC: 39121409

Status:  UNKNOWN

Retail Price:  $61.61 / EA
Your Price:  $44.39 / EA


Quantity  EA

Specifications

Manufacturer Name NSI IND., INC.
MfgPartNo ISR-250
Additional Information Constructional Feature Abrasion Resistant, Chemical Resistant; Temperature Rating 90 Deg C; Application Wire Termination
Aluminum Conductor Max AMP 230 Amp
Aluminum Conductor Note Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables
Application Wire Termination
Approval UL 486 A/B, UL (Canada and US)
Base Price 0.0000
Body Material Black Plastisol
Brand Name POLARIS
Catalog Number ISR-250
Color Black
Commerce Sector Construction Materials
Commodity Code 64130
Commodity Description Splicing & Terminating Kits
Conductor Material Copper/Aluminum
Copper Conductor Max 290 Amp
CountryOfOrigin USA
DDCATEGORY 598
Directory CIS
Environmental Conditions 90 C
Families 598
Family Description Splicing & Terminating Kits
Finish Plastisol Insulated
Hex Size 5/16 Inch
Image Location * Image
Industry ELX
Insulation Type Insulated
InvoiceDescription POLARIS Ins Splice 250;6AWG-250MCM SPLICR/RED
Item Number 95102
Long Description SPLICE, IN-LINE, DUAL RATED TYPE; 4 INCH LENGTH X 1.19 INCH WIDTH X 1.9 INCH HEIGHT SIZE; 6 AWG MIN. CONDUCTOR SIZE; 250 KCMIL MAX. CONDUCTOR SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL; UL 486 A/B, UL (CANADA AND US) APPROVAL; 600 VOLT VOLTAGE RATING
MSDS Form Number *
Material Aluminum
Maximum Conductor Size 250 KCMIL
Minimum Conductor Size 6 AWG
Model ISR
Noun *
Number Of Conductors 2
Number Of Poles 1
Number Of Screws 2
Product Description 250 Mcm-6 Awg Polaris Insulated In-Line Splice
Product Keywords WEBREADY
Product Name Wire connectors
ProductLine NSI
Size L=4.000 - W=1.190 - H=1.900 IN;4 Inch Length x 1.19 Inch Width x 1.9 Inch Height
Special Features 250 MCM-6 AWG - Dual Rated
Standard UL 486A/B
Temperature Rating 90 C
Type IN-Line Splicer/Reducer;In-Line, Dual Rated
UNSPSC 39121409
UPC 66238195102
Vendor Name NSI IND., INC.
Vendor Number 662381
Vendor Short Name NSI
Voltage Rating 600 V;600 Volt
Warranty 1 Year
Wire Cable Class Class B, Class C
Wire Size 250 MCM-6 AWG
Wire Type Class B & C

Resources

CatalogNumber ISR-250
Full Image

Package Information

SellPkgQty 1
