| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | 4Q-100LT |
| Additional Information | Lug Wire Size 14 to 4 AWG; Grounding Type Positive; Constructional Feature Liquid/Rain/Oil/Concrete Tight; Enclosure Rating Class I Div 2 and Zone 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Hazardous/Wet Location; Applicable Standard NEC/ |
| Application | For Liquidtight Flexible Metal Conduit |
| Approval | UL 467, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Ground-Tite[R] |
| Catalog Number | 4Q-100LT |
| Commerce Sector | Construction Materials |
| Commodity Code | 24100 |
| Commodity Description | Liquid Tight Flex. Conduit Fittings |
| Conductor Range | 14 - 4 |
| Connection | Compression X Tapered MNPT Hub |
| CountryOfOrigin | MX |
| DDCATEGORY | 129 |
| Directory | CIS |
| Environmental Conditions | Hazardous Location |
| Families | 129 |
| Family Description | Liquid Tight Flex. Conduit Fittings |
| Finish | Zinc Electroplated |
| Image Location | * Image |
| Industry | ELX |
| Insulation | True |
| InvoiceDescription | 1 IN STR CONN LFMC INSUL W/LUG;1IN STR INS L/T CON |
| Item Number | 61753 |

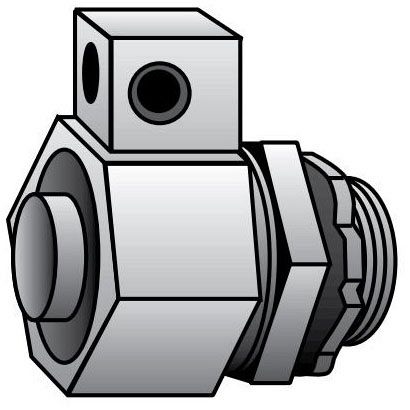

| Long Description | LIQUIDTIGHT FLEXIBLE CONDUIT CONNECTOR, STRAIGHT, TAPERED THREADED MALE HUB TYPE; ZINC ELECTROPLATED MALLEABLE IRON (BODY/NUT), ZINC ELECTROPLATED STEEL (FERRULE) MATERIAL; FLEXIBLE METALLIC CONDUIT USED ON; UL 467, CSA C22.2 APPROVAL; 1 INCH TRADE SIZE |
| MSDS Form Number | * |
| Material | Malleable Iron Body and Nut, Steel Ferrule;Zinc Electroplated Malleable Iron (Body/Nut), Zinc Electroplated Steel (Ferrule) |
| Model | 4Q |
| NEMA Rating | 4 |
| Noun | * |
| Product Description | 1IN STR INS L/T CON |
| Product Keywords | WEBREADY |
| Product Name | Liquid tight connectors |
| ProductLine | OZ-G |
| Size | 1 IN |
| Special Features | 4Q-LT fittings have insulated throat to protect against wire damage;Bonding wedge locknuts are recommended in hazardous locations;capable of withstanding high ground fault;Compact, slim diameter with small turning radius;Furnished with locknut and knockout sealing ring;Grounding lug is cast as an integral part of malleable iron gland nut;Hot dip or mechanically galvanized finish optionally available;Inspection windows in ferrule to ensure full engagement;Intrinsically safe;Liquidtight/raintight/oiltight/concretetight;Long ferrule prevents pullout and tight bend conduit pop-out;Positive grounding type;UL Listed NEMA type 4 when installed into a NPT threaded entry or UL Listed conduit hub (sizes 1-1/4 IN and larger require thread sealant);Used to secure, ground and seal liquidtight flexible metal conduit to boxes and enclosures |
| Standard | Third Party Certification: UL File Number E-24264, CSA 9795, Applicable Third Party Standards: UL 467, CSA C22.2 No.41, Federal Specification W-F-406E, NEMA : FB-1, Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20 |
| Throat Type | Insulated with Grounding Lug |
| Trade Size | 1 Inch |
| Type | Type 4Q-LT Grounding Liquid Tight Straight Connector With Lug;Straight, Tapered Threaded Male Hub |
| UNSPSC | 39121420 |
| UPC | 78312661753 |
| Used On | Flexible Metallic Conduit |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
