| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | 4Q-4200L |
| Additional Information | Wire Size 6 to 1/0 AWG; Grounding Type Positive |
| Application | For Liquidtight Flexible Metal Conduit |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | O-Z/Gedney;Ground-Tite[R] |
| Catalog Number | 4Q-4200L |
| Commerce Sector | Construction Materials |
| Commodity Code | 24100 |
| Commodity Description | Liquid Tight Flex. Conduit Fittings |
| Conductor Range | 6 - 1/0 AWG |
| Connection | Compression X Tapered MNPT Hub |
| CountryOfOrigin | MX |
| DDCATEGORY | 129 |
| Directory | CIS |
| Families | 129 |
| Family Description | Liquid Tight Flex. Conduit Fittings |
| Finish | Zinc Electroplated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 2 IN 45 DEG CONN LFMC W/LUG;2IN 45D L/T CONN |
| Item Number | 61912 |

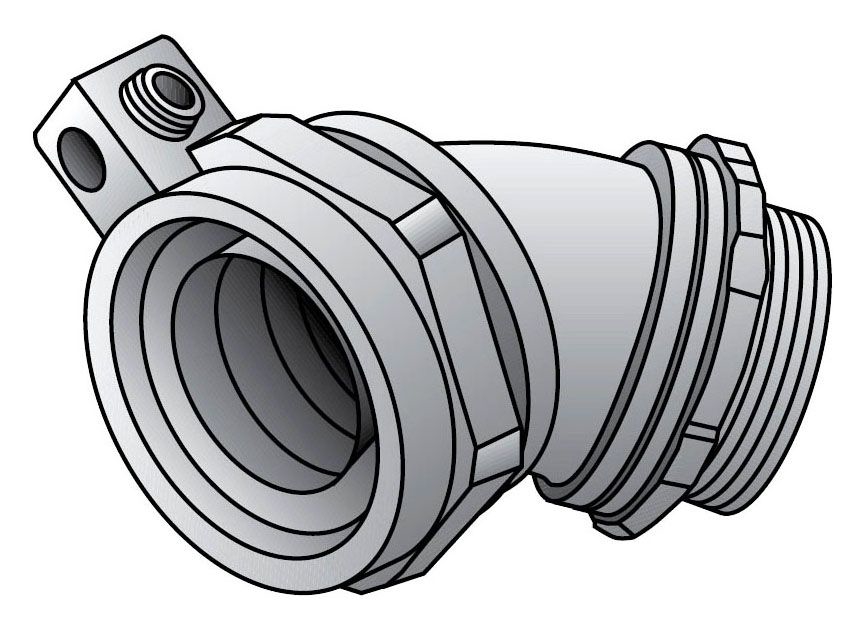

| Long Description | LIQUIDTIGHT FLEXIBLE CONDUIT CONNECTOR, 45 DEG MALE TYPE; ZINC ELECTROPLATED MALLEABLE IRON BODY/NUT, ZINC ELECTROPLATED STEEL FERRULE MATERIAL; FLEXIBLE METALLIC LIQUIDTIGHT CONDUIT USED ON; UL, CSA APPROVAL; 2 INCH TRADE SIZE |
| MSDS Form Number | * |
| Material | Malleable Iron Body And Nut, Steel Ferrule;Zinc Electroplated Malleable Iron Body/Nut, Zinc Electroplated Steel Ferrule |
| Model | 4Q-L |
| NEMA Rating | NEMA 4 |
| Noun | * |
| Product Description | 2IN 45D L/T CONN |
| Product Keywords | WEBREADY |
| Product Name | Liquid tight connectors |
| ProductLine | OZ-G |
| Size | 2 IN |
| Special Features | 4Q-L fittings have plain throat (non-insulated); Used to secure, ground and seal liquidtight flexible metal conduit to boxes and enclosures; Hot dip or mechanically galvanized finish optionally available; Positive grounding type; Grounding lug is cast as an integral part of malleable iron gland nut; capable of withstanding high ground fault; Compact, slim diameter with small turning radius; Furnished with locknut and knockout sealing ring; Liquidtight/raintight/oiltight/concretetight; UL listed NEMA type 4 when installed into a NPT threaded entry or UL listed conduit hub (sizes 1-1/4 IN and larger require thread sealant); Intrinsically safe; Bonding wedge locknuts are recommended in hazardous locations; Long ferrule prevents pullout and tight bend conduit pop-out; Inspection windows in ferrule to ensure full engagement |
| Standard | Third Party Certification: UL File Number E-24264, CSA 9795, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20 |
| Throat Type | Non-Insulated with Ground Lug |
| Trade Size | 2 Inch |
| Type | Type 4Q-L Grounding Liquid Tight 45 DEG Connector With Lug;45 Deg Male |
| UNSPSC | 39121420 |
| UPC | 78312661912 |
| Used On | Flexible Metallic Liquidtight Conduit |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
