| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | 4Q-475T |
| Additional Information | Size 1-1/2 Inch Dia |
| Application | For Liquidtight Flexible Metal Conduit |
| Approval | UL 514B, CSA C22.2 |
| Base Price | 0.0000 |
| Catalog Number | 4Q-475T |
| Commerce Sector | Construction Materials |
| Commodity Code | 24100 |
| Commodity Description | Liquid Tight Flex. Conduit Fittings |
| Connection | Compression X Tapered MNPT Hub |
| CountryOfOrigin | MX |
| DDCATEGORY | 129 |
| Directory | CIS |
| Families | 129 |
| Family Description | Liquid Tight Flex. Conduit Fittings |
| Finish | Zinc Electroplated |

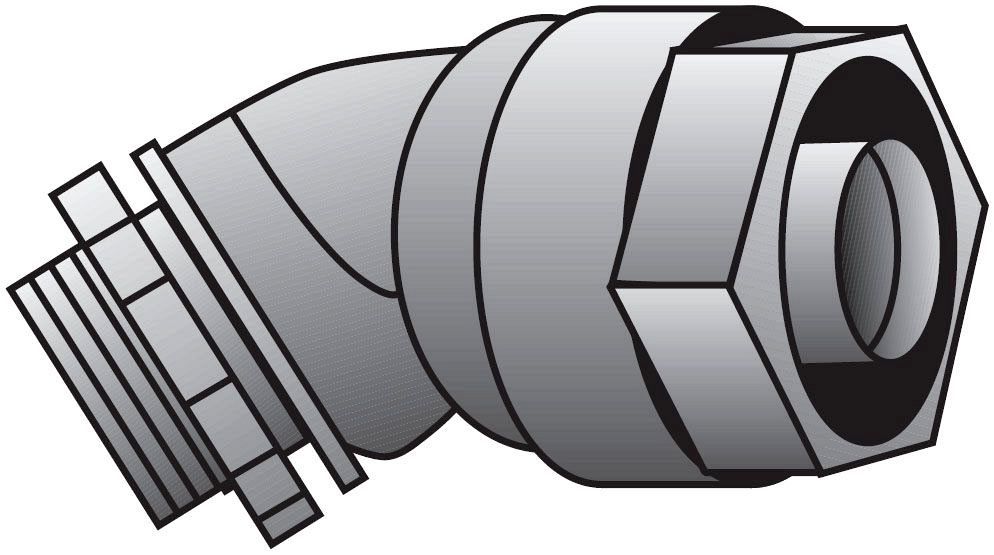

| Image Location | * Image |
| Industry | ELX |
| Insulation | True |
| InvoiceDescription | 3/4 IN 45 DEG CONN LFMC INSUL;3/4 45D INS L/T CONN |
| Item Number | 61840 |
| Long Description | LIQUIDTIGHT FLEXIBLE CONDUIT CONNECTOR, 45 DEG MALE TYPE; ZINC ELECTROPLATED MALLEABLE IRON BODY/NUT, ZINC ELECTROPLATED STEEL FERRULE MATERIAL; FLEXIBLE METALLIC LIQUIDTIGHT CONDUIT USED ON; UL 514B, CSA C22.2 APPROVAL; 3/4 INCH TRADE SIZE |
| MSDS Form Number | * |
| Material | Malleable Iron Body And Nut, Steel Ferrule;Zinc Electroplated Malleable Iron Body/Nut, Zinc Electroplated Steel Ferrule |
| Model | 4Q |
| NEMA Rating | 4 |
| Noun | * |
| Product Description | 3/4 45D INS L/T CONN |
| Product Keywords | WEBREADY |
| Product Name | Liquid tight connectors |
| ProductLine | OZ-G |
| Size | 3/4 IN |
| Special Features | "4Q-T fittings have insulated throat to protect against wire damage;Bonding wedge locknuts are recommended in hazardous locations;Compact, slim diameter with small turning radius;Furnished with locknut and Knockout sealing ring;Hot dip or mechanically galvanized finish optionally available;Inspection windows in fe;Intrinsically safe;Liquidtight/raintight/oiltight/concretetight;Long ferrule prevents pullout and tight bend conduit ""pop-out"";O-Z/Gedney fittings are used with liquidtight flexible metal conduit to provide a dependable connection and are suitable for use in wet locations;Reusable ferrule;Suitable for grounding through 1-1/4 IN trade size (for larger trade sizes, an internal or external equipment bonding conductor is required);UL listed NEMA type 4 when installed into a NPT threaded entry or UL listed conduit hub (sizes 1-1/4 IN and larger require thread sealant);Used to secure, ground and seal liquidtight flexible metal conduit, Type LFMC, to boxes and enclosures" |
| Standard | Third Party Certification: UL File Number 11853, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20 |
| Throat Type | Insulated |
| Trade Size | 3/4 Inch |
| Type | Type 4Q-T Liquid Tight 45 DEG Connector;45 Deg Male |
| UNSPSC | 39121420 |
| UPC | 78312661840 |
| Used On | Flexible Metallic Liquidtight Conduit |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
