| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | 4Q-938 |
| Additional Information | Size 1.13 Inch Diameter; Enclosure Type Class I Div 2 and Zone 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1, ANSI |
| Application | For Liquidtight Flexible Metal Conduit |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | O-Z/Gedney |
| Catalog Number | 4Q-938 |
| Commerce Sector | Construction Materials |
| Commodity Code | 24100 |
| Commodity Description | Liquid Tight Flex. Conduit Fittings |
| Connection | Compression X Tapered MNPT Hub |
| CountryOfOrigin | MX |
| DDCATEGORY | 129 |
| Directory | CIS |
| Families | 129 |
| Family Description | Liquid Tight Flex. Conduit Fittings |
| Finish | Zinc Electroplated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 3/8 IN 90 DEG CONN LFMC;3/8 90D L/T CONN |
| Item Number | 61845 |

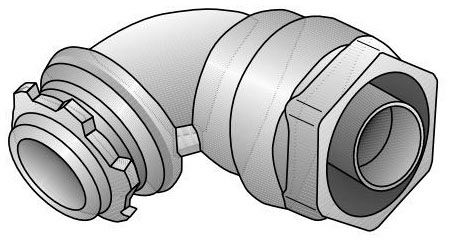

| Long Description | LIQUIDTIGHT FLEXIBLE CONDUIT CONNECTOR, 90 DEGREE TYPE; ZINC ELECTROPLATED MALLEABLE IRON (BODY/NUT), ZINC ELECTROPLATED STEEL (FERRULE) MATERIAL; LIQUID TIGHT FLEXIBLE METALLIC CONDUIT USED ON; UL, CSA APPROVAL; 3/8 INCH TRADE SIZE |
| MSDS Form Number | * |
| Material | Malleable Iron Body And Nut, Steel Ferrule;Zinc Electroplated Malleable Iron (Body/Nut), Zinc Electroplated Steel (Ferrule) |
| Model | 4Q |
| NEMA Rating | NEMA 4 |
| Noun | * |
| Product Description | 3/8 90D L/T CONN |
| Product Keywords | WEBREADY |
| Product Name | Liquid tight connectors |
| ProductLine | OZ-G |
| Size | 3/8 IN (1/2 KO) IN |
| Special Features | O-Z/Gedney fittings are used with liquidtight flexible metal conduit to provide a dependable connection and are suitable for use in wet locations; 4Q fittings have plain throat (non-insulated); Used to secure, ground and seal liquidtight flexible metal conduit, Type LFMC, to boxes and enclosures; Hot dip or mechanically galvanized finish optionally available; Compact, slim diameter with small turning radius; Furnished with locknut and knockout sealing ring; Liquidtight/raintight/oiltight/concretetight; UL listed NEMA type 4 when installed into a NPT threaded entry or UL listed conduit hub (sizes 1-1/4 IN and larger require thread sealant); Suitable for grounding through 1-1/4 IN trade size (for larger trade sizes, an internal or external equipment bonding conductor is required); Intrinsically safe; Bonding wedge locknuts are recommended in hazardous locations; Long ferrule prevents pullout and tight bend conduit pop-out; Reusable ferrule; Inspection windows in ferrule to ensure full en |
| Standard | Third Party Certification: UL File Number 11853, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20 |
| Throat Type | Non-Insulated |
| Trade Size | 3/8 Inch |
| Type | Type 4Q Liquid Tight 90 DEG Connector;90 Degree |
| UNSPSC | 39121420 |
| UPC | 78312661845 |
| Used On | Liquid Tight Flexible Metallic Conduit |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
