| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | B-200 |
| Additional Information | Applicable Standard Federal Specification W-F-408E, NEMA FB-1; Application Protect Insulated Conductors from Abrasion During Pulling and from Mechanical Vibration, Provide a Voltage Gradient Between Live Conductors and Ground at the Point of Electrical an |
| Application | For Threaded Rigid Conduit And IMC |
| Approval | UL 514B, CSA C22.2 |
| Base Price | 0.0000 |
| Catalog Number | B-200 |
| Commerce Sector | Construction Materials |
| Commodity Code | 22100 |
| Commodity Description | Rigid Steel Conduit Fittings |
| Connection | Threaded |
| CountryOfOrigin | MX |
| DDCATEGORY | 121 |
| Diameter | 2-3/4 Inch |
| Directory | CIS |
| Families | 121 |
| Family Description | Rigid Steel Conduit Fittings |
| Finish | Zinc Plated |
| Height | 7/8 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 2 IN INSUL BSHG;2IN INS MALL BUSH |
| Item Number | 02915 |

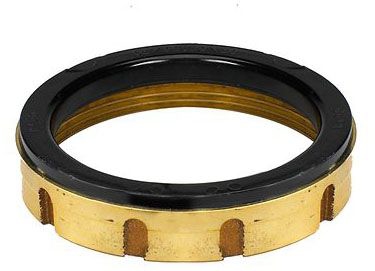

| Long Description | RIGID CONDUIT INSULATED BUSHING, THREADED FEMALE TYPE; ZINC PLATED MALLEABLE IRON MATERIAL; 7/8 INCH; RIGID CONDUIT/IMC USED ON; UL 514B, CSA C22.2 APPROVAL; 2-3/4 INCH DIAMETER; 150 DEG C TEMPERATURE RATING; 2 INCH TRADE SIZE |
| MSDS Form Number | * |
| Material | Malleable Iron;Zinc Plated Malleable Iron |
| Model | B |
| Noun | * |
| Product Description | 2IN INS MALL BUSH |
| Product Keywords | WEBREADY |
| Product Name | Electrical bushings |
| ProductLine | OZ-G |
| Size | 2 IN |
| Special Features | Molded-on high impact phenolic thermosetting insulation;O-Z/Gedney specification grade insulated bushings help protect insulated conductors from abrasion during pulling or due to mechanical vibration;Positive metallic conduit stop;They also provide a voltage gradient between the live conductors and ground at the point where conductor insulation is subjected to electrical and mechanical stress;Type B insulated bushings of malleable iron or steel, with conduit end stop and integrally molded noncombustible phenolic insulated surfaces rated 150 DEG C shall be used on the ends of all raceways containing number 4 or larger conductors |
| Standard | Third Party Certification: UL File Number E-11853, CSA 011584, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-408E, NEMA : FB-1 |
| Temperature Rating | 150 Deg C |
| Temperature Rating Maximum | 302 F |
| Temperature Rating Minimum | 302 F |
| Throat Type | Thermoset Phenolic Insulated |
| Trade Size | 2 Inch |
| Type | Type B Insulated Bushing;Threaded Female |
| UNSPSC | 39121312 |
| UPC | 78312602915 |
| Used On | Rigid Conduit/IMC |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
