| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | BLG-0704 |
| Additional Information | Applicable Standard W-F-408E, NEMA FB-1 |
| Application | For Threaded Rigid Conduit, IMC And EMT Conduit |
| Approval | UL 467/514B, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Copper Plus[TM], Lay-In-Lug[TM] |
| Catalog Number | BLG-0704 |
| Commerce Sector | Construction Materials |
| Commodity Code | 22100 |
| Commodity Description | Rigid Steel Conduit Fittings |
| Conductor Material | Copper |
| Connection | Set-Screw |
| CountryOfOrigin | MX |
| DDCATEGORY | 121 |
| Diameter | 1-3/8 Inch |
| Directory | CIS |
| Families | 121 |
| Family Description | Rigid Steel Conduit Fittings |
| Finish | Zinc Plated |
| Height | 5/8 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 3/4 IN INSUL GNDG BSHG;3/4 INS GRND BUSH |
| Item Number | 04206 |

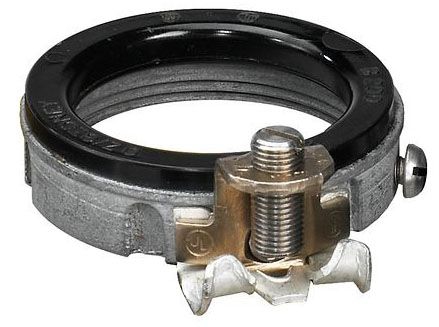

| Long Description | RIGID CONDUIT INSULATED GROUNDING BUSHING, THREADED, SET SCREW TYPE; ZINC PLATED STEEL (BODY), STAINLESS STEEL (SCREW) MATERIAL; 5/8 INCH; RIGID/IMC CONDUIT USED ON; 14 TO 4 AWG SOLID/STRANDED WIRE SIZE; COPPER CONDUCTOR MATERIAL |
| Lug Type | Lay-In |
| MSDS Form Number | * |
| Material | Steel Body, Stainless Steel Screws;Zinc Plated Steel (Body), Stainless Steel (Screw) |
| Model | BLG |
| Noun | * |
| Product Description | 3/4 INS GRND BUSH |
| Product Keywords | WEBREADY |
| Product Name | Electrical bushings |
| ProductLine | OZ-G |
| Size | 3/4 IN |
| Special Features | Allows easy insertion of grounding conductor for through or end connection;Copper conductor only for #14-4 lug;Low grounding connector profile;Lugs not sold separately;O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing;Phenolic insulation, with 150 DEG C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures;Protects insulated conductors from abrasion during pulling and mechanical vibration;Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation;Set screw provides fixed alignment and positive ground continuity;Spring action design maintains positive firm contact on grounding conductor |
| Standard | Third Party Certification: UL File Number E-24264, CSA 015978, Applicable Third Party Standards: UL 514B, 467, 468, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1 |
| Temperature Rating Maximum | 302 F |
| Temperature Rating Minimum | 302 F |
| Throat Type | Phenolic Insulated |
| Trade Size | 3/4 Inch |
| Type | Type BLG Insulated Grounding Bushing;Threaded, Set Screw |
| UNSPSC | 39121312 |
| UPC | 78312604206 |
| Used On | Rigid/IMC Conduit |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
| Wire Size | 14 to 4 AWG Solid/Stranded |
