| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | CHM-300T |
| Additional Information | Applicable Standard W-F-408E |
| Application | For Rigid Conduit And IMC |
| Approval | UL 514B, CSA C22.2 |
| Base Price | 0.0000 |
| Catalog Number | CHM-300T |
| Commerce Sector | Construction Materials |
| Commodity Code | 22100 |
| Commodity Description | Rigid Steel Conduit Fittings |
| Connection | Male X 3-8 Tapered FNPT |
| Constructional Feature | Dusttight, Raintight, Watertight |
| CountryOfOrigin | MX |
| DDCATEGORY | 121 |
| Directory | CIS |
| Families | 121 |
| Family Description | Rigid Steel Conduit Fittings |
| Finish | Electro Zinc Plated |
| Ground Type | Locknut Bonding Screw |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 3 IN COND HUB RMC/IMC INSUL;3IN RT INS KO HUB |
| Item Number | 19432 |

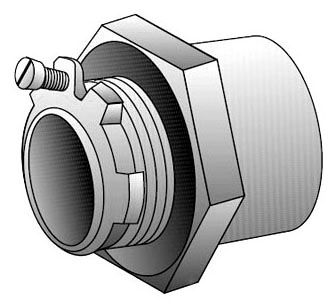

| Long Description | RIGID CONDUIT HUB, MALE THREADED TYPE; ZINC PLATED MALLEABLE IRON BODY, LOCKNUT, ZINC PLATED SCREW, NEOPRENE O-RING MATERIAL; 4-5/8 INCH DIA X 2-3/4 INCH L SIZE; RIGID CONDUIT/IMC USED ON; UL 514B, CSA C22.2 APPROVAL; LOCKNUT BONDING SCREW |
| MSDS Form Number | * |
| Material | Malleable Iron;Zinc Plated Malleable Iron Body, Locknut, Zinc Plated Screw, Neoprene O-ring |
| Model | CHM-T |
| Noun | * |
| Product Description | 3IN RT INS KO HUB |
| Product Keywords | WEBREADY |
| Product Name | Electrical fittings |
| ProductLine | OZ-G |
| Size | 3;4-5/8 Inch Dia x 2-3/4 Inch L |
| Special Features | Insulated throat form with bonding locknut;Recessed O-ring seal assures watertight and dust tight connections;Suitable for service entrance application |
| Standard | Third Party Certification: UL File Number 11853 For Use In Wet Locations, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-408E, NEMA : FB-1, NEMA : 4, NEMA : 12, Hazardous Locations: Class I, Division 2/Class II, Division 1, 2/Class III, Division 1, 2 Per NEC 501-4(b), 501.10(b)(4), 502-4(a)(2), 503-3(a) |
| Throat Type | Insulated |
| Trade Size | 3 Inch |
| Type | Type CHM-T Raintight Conduit Hub;Male Threaded |
| UNSPSC | 39121311 |
| UPC | 78312619432 |
| Used On | Rigid Conduit/IMC |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
