| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | EYA-50 |
| Additional Information | Overall Dimension 3.5 Inch Length x 1.9 Inch Width; Used On Threaded IMC/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard NEC/CEC, Mil-F-28675 |
| Application | For Rigid Conduit Or IMC |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Catalog Number | EYA-50 |
| Commerce Sector | Construction Materials |
| Commodity Code | 25120 |
| Commodity Description | Steel Sealing Bodies |
| Connection | Tapered FNPT |
| Connection Type | Female/Female |
| CountryOfOrigin | MX |
| DDCATEGORY | 550 |
| Directory | CIS |
| Enclosure | Class I Group A B C D, Class II Group E F G, Class III |
| Families | 550 |
| Family Description | Steel Sealing Bodies |
| Finish | Electro Zinc Plated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1/2 IN HOR/VERT SEALING FTG;1/2 FEM/FEM COND SEAL |
| Item Number | 13800 |

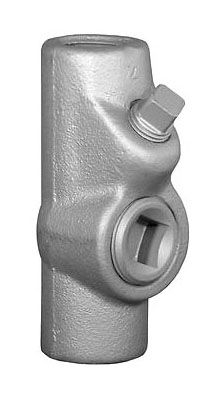

| Long Description | CONDUIT SEALING FITTING, ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON MATERIAL; FEMALE/FEMALE CONNECTION TYPE; UL, CSA APPROVAL; CLASS I GROUP A B C D, CLASS II GROUP E F G, CLASS III ENCLOSURE; 1/2 INCH TRADE SIZE |
| MSDS Form Number | * |
| Material | Malleable Iron;Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron |
| Model | EYA |
| Mounting Position | Horizontal/Vertical |
| Noun | * |
| Product Description | 1/2 FEM/FEM COND SEAL |
| Product Keywords | WEBREADY |
| Product Name | Electrical fittings |
| ProductLine | OZ-G |
| Size | 1/2 |
| Special Features | 25 PCT conductor fill;Explosion proof, dust-ignition proof;To minimize the passage of gases and vapors and prevent the passage of flames from one portion of the electrical system to another through the conduit;To seal conduits in vertical or horizontal runs;Use with type EYC sealing compound and type EYF fiber |
| Standard | Third Party Certification: UL File Number E-34997, CSA 009795 Suitable For Wet Locations, UL Listed Using: O-Z/Gedney EYC Sealing Compound Or Crouse-Hinds Chico Compound, CSA Certified Sealing Compound, Class I, Division 1, 2, Groups A, B, C, D, Class I, Zone 1, 2, Groups IIA, IIB, IIC, Class II, Division 1, 2, Groups E, F, G, Class III, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30 NEC Articles 500-503 & 505, Military Specification: Mil-F-28675 |
| Trade Size | 1/2 Inch |
| Turning Radius | 1.06 Inch |
| Type | Type EYA Vertical/Horizontal Sealing Fitting |
| UNSPSC | 39121311 |
| UPC | 78312613800 |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
