| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | EYAM-50 |
| Additional Information | Overall Dimension 4.72 Inch Length x 1.19 Inch Width; Used On Threaded IMC/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard NEC/CEC, Mil-F-28675 |
| Application | For Rigid Conduit Or IMC |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | O-Z/Gedney |
| Catalog Number | EYAM-50 |
| Commerce Sector | Construction Materials |
| Commodity Code | 25120 |
| Commodity Description | Steel Sealing Bodies |
| Connection | Tapered MNPT X Tapered FNPT |
| Connection Type | Male/Female |
| CountryOfOrigin | MX |
| DDCATEGORY | 550 |
| Directory | CIS |
| Enclosure | Class I Group A B C D, Class II Group E F G, Class III |
| Families | 550 |
| Family Description | Steel Sealing Bodies |
| Finish | Zinc Electroplated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1/2 IN HOR/VERT SEALING FTG;1/2 FEM/MALE COND SEAL |
| Item Number | 13900 |

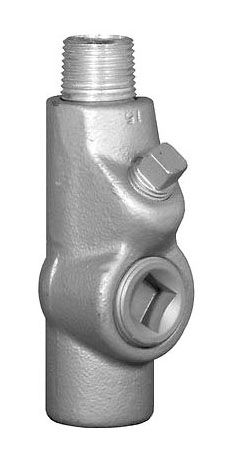

| Long Description | CONDUIT SEALING FITTING, HUB TYPE; ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON MATERIAL; MALE/FEMALE CONNECTION TYPE; UL, CSA APPROVAL; CLASS I GROUP A B C D, CLASS II GROUP E F G, CLASS III ENCLOSURE; 1/2 INCH TRADE SIZE |
| MSDS Form Number | * |
| Material | Malleable Iron;Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron |
| Model | EYAM |
| Mounting Position | Horizontal/Vertical |
| Noun | * |
| Product Description | 1/2 FEM/MALE COND SEAL |
| Product Keywords | WEBREADY |
| Product Name | Electrical fittings |
| ProductLine | OZ-G |
| Size | 1/2 IN |
| Special Features | To seal conduits in vertical or horizontal runs; To minimize the passage of gases and vapors and prevent the passage of flames from one portion of the electrical system to another through the conduit; 25 PCT conductor fill; Explosion proof, dust-ignition proof; Use with type EYC sealing compound and type EYF fiber; Supplied with removable close nipple |
| Standard | Third Party Certification: UL File Number E-34997, CSA 009795 Suitable For Wet Locations, UL Listed Using: O-Z/Gedney EYC Sealing Compound Or Crouse-Hinds Chico Compound, CSA Certified Sealing Compound, Class I, Division 1, 2, Groups A, B, C, D, Class I, Zone 1, 2, Groups IIA, IIB, IIC, Class II, Division 1, 2, Groups E, F, G, Class III, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30 NEC Articles 500-503 & 505, Military Specification: Mil-F-28675 |
| Trade Size | 1/2 Inch |
| Turning Radius | 1.06 Inch |
| Type | Type EYAM Vertical/Horizontal Sealing Fitting;Hub |
| UNSPSC | 39121311 |
| UPC | 78312613900 |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
