| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | FDL175 |
| Additional Information | Application Indoor/Outdoor |
| Application | For Rigid Conduit And IMC |
| Approval | UL 514A, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Unilet[R] |
| Cable Entry | 3/4 |
| Capacity | 25 Cu Inch |
| Catalog Number | FDL175 |
| Commerce Sector | Construction Materials |
| Commodity Code | 25130 |
| Commodity Description | Steel Fs & Fd Type Boxes & Covers |
| Configuration Type | FDL |
| Construction | Ridge Top |
| CountryOfOrigin | MX |
| Cubic Capacity | 28 in3 |
| DDCATEGORY | 551 |
| Depth | 2.69 Inch |
| Directory | CIS |
| Families | 551 |
| Family Description | Steel Fs & Fd Type Boxes & Covers |
| Height | 5.88 Inch |
| Hub Location | (1) Side, (1) End |
| Hub Size | 3/4 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1 GANG CAST DEV BX DEEP;1G MALL FDL BOX |
| Item Number | 20183 |
| Knockouts | False |
| Long Description | FD CAST DEVICE BOX, ZINC ELECTROPLATED/DICHROMATE/EPOXY POWDER COATED MALLEABLE IRON MATERIAL; 2.81 INCH; 5.88 INCH; 2.69 INCH; DEEP SHAPE; 3/4 INCH HUB SIZE; 2 HUB(S); 1 GANG(S); UL 514A, CSA C22.2 APPROVAL; 25 CU INCH CAPACITY |
| MSDS Form Number | * |
| Material | Gray Iron;Zinc Electroplated/Dichromate/Epoxy Powder Coated Malleable Iron |
| Model | FD |
| Mounting Hardware | Not Included |
| Noun | * |
| Number Of Gangs | 1 |
| Number Of Hubs | 2 |
| Number Of Outlet | 2 |
| Product Description | 1G MALL FDL BOX |
| Product Keywords | WEBREADY |

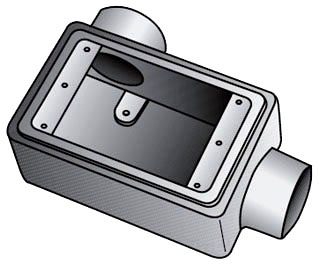

| Product Name | Cast device box |
| ProductLine | OZ-G |
| Shape | Deep |
| Size | 3/4 IN |
| Special Features | For use with FS style covers as well as standard device plates made of steel, brass, bakelite, etc;Furnished with internal grounding screw;Ridge top construction provides positive fit between gasket, box and cover to seal out moisture;Rugged and corrosion resistant for indoor or outdoor use;Single gang without mounting feet;Suitable for use in wet locations when used with gasketed covers;Tapered threaded hubs (NPT) with integral bushings;These heavy duty cast hub device boxes accommodate standard wiring devices such as switches and receptacles, serve as pull boxes for conductors, provide access for splicing and maintenance, or allow connections for branch conduit runs;Weatherproof, raintight and dust-tight when used with cast gasketed covers |
| Standard | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification A-A-50563, NEMA : FB-1 |
| Type | 1-Gang Type FDL Deep Cast Device Box |
| UNSPSC | 39121315 |
| UPC | 78312620183 |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
| Width | 2.81 Inch |
