| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | FS175 |
| Additional Information | Application Commercial, Industrial, Indoor, Outdoor; Use with Threaded Rigid Conduit and IMC; Applicable Standard Fed Spec A-A-50563, NEMA FB-1 |
| Application | For Rigid Conduit And IMC |
| Approval | UL 514A/E2527/E18095, CSA C22.2, NEC, CEC |
| Base Price | 0.0000 |
| Brand Name | O-Z/Gedney;Unilet[R] |
| Cable Entry | 0.75 |
| Capacity | 18 Cubic Inch |
| Catalog Number | FS175 |
| Commerce Sector | Construction Materials |
| Commodity Code | 25130 |
| Commodity Description | Steel Fs & Fd Type Boxes & Covers |
| Configuration Type | FS |
| Construction | Ridge Top |
| CountryOfOrigin | MX |
| Cubic Capacity | 21 CU-IN |
| DDCATEGORY | 551 |
| Depth | 2 Inch |
| Directory | CIS |
| Families | 551 |
| Family Description | Steel Fs & Fd Type Boxes & Covers |
| Height | 5.88 Inch |
| Hub Location | (1) End |
| Hub Size | 3/4 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | FS SINGLE GANG DEVICE BOX;1G MALL FS BOX |
| Item Number | 20401 |
| Knockouts | No |
| Long Description | FS CAST DEVICE BOX, ZINC ELECTROPLATED/CHROMATE/EPOXY POWDER COATED MALLEABLE IRON MATERIAL; 2.81 INCH; 5.88 INCH; 2 INCH; SHALLOW SHAPE; 3/4 INCH HUB SIZE; 1 HUB(S); 1 GANG(S); UL 514A/E2527/E18095, CSA C22.2, NEC, CEC APPROVAL; FLUSH MOUNTING |
| MSDS Form Number | * |
| Material | Gray Iron;Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron |
| Model | FS |
| Mounting | Flush |
| Mounting Hardware | (2) Lugs |
| Noun | * |
| Number Of Gangs | 1 |
| Number Of Hubs | 1 |
| Number Of Outlet | 1 |
| Product Description | 1G MALL FS BOX |
| Product Keywords | WEBREADY |

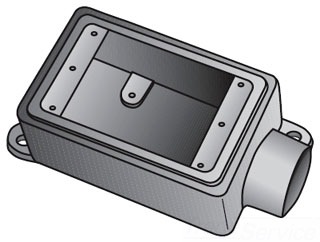

| Product Name | Cast device box |
| ProductLine | OZ-G |
| Shape | Shallow |
| Size | 3/4 IN |
| Special Features | These heavy duty cast hub device boxes accommodate standard wiring devices such as switches and receptacles, serve as pull boxes for conductors, provide access for splicing and maintenance, or allow connections for branch conduit runs; Rugged and corrosion resistant for indoor or outdoor use; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Ridge top construction provides positive fit between gasket, box and cover to seal out moisture; Furnished with internal grounding screw; Tapered threaded hubs (NPT) with integral bushings; Suitable for use in wet locations when used with gasketed covers; For use with FS style covers as well as standard device plates made of steel, brass, bakelite, etc; Single gang with mounting feet |
| Standard | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification A-A-50563, NEMA : FB-1 |
| Type | 1-Gang Type FS Shallow Cast Device Box |
| UNSPSC | 39121315 |
| UPC | 78312620401 |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
| Width | 2.81 Inch |
