| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | G-200G |
| Additional Information | Applicable Standard NEMA FB-1 |
| Application | For Connecting Grounding Conductors To Cold Water Ground Pipe |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | O-Z/Gedney |
| Catalog Number | G-200G |
| Commerce Sector | Construction Materials |
| Commodity Code | 92000 |
| Commodity Description | Ground Rods & Grounding Systems |
| Conductor Size | 8 AWG Solid to 2 AWG Stranded |
| CountryOfOrigin | MX |
| DDCATEGORY | 395 |
| Directory | CIS |
| Families | 395 |
| Family Description | Ground Rods & Grounding Systems |
| IPS Size | 1-1/4 to 2 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | U Bolt to Pipe |
| InvoiceDescription | UNIV GND CLAMP;1-1/4TO2 MALL GRD CLAMP |
| Item Number | 23805 |
| Length | 3-5/8 in |
| Long Description | GROUNDING CLAMP, HOT DIP GALVANIZED MALLEABLE IRON BODY, STEEL BOLT/NUT MATERIAL; 3-5/8 INCH W X 4-5/8 INCH H SIZE; GROUND CONDUCTOR TO PIPE USED ON; U BOLT TO PIPE INSTALLATION; UL, CSA APPROVAL; 8 AWG SOLID TO 2 AWG STRANDED CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Hot Dip Galvanized Malleable Iron Body, Steel Bolt/Nut |
| Model | G |
| Noun | * |
| Product Description | 1-1/4TO2 MALL GRD CLAMP |
| Product Keywords | WEBREADY |
| Product Name | Grounding devices or assemblies |
| ProductLine | OZ-G |
| Size | 1-1/4 IN, 1-1/2 IN, 2 IN;3-5/8 Inch W x 4-5/8 Inch H |
| Special Features | Standard built-in ground wire connector for #8 solid through #2 stranded AWG wire; Provision for separate 2-station attachment of additional swivel accessories |
| Standard | Third Party Certification: UL File Number E-24264, CSA 009795, Applicable Third Party Standards: UL 467, CSA C22.2 No.18, Federal Specification W-F-406E |

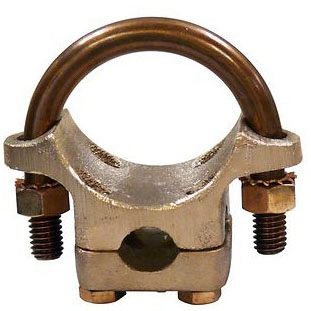

| Type | Type G Universal Ground Clamp |
| UNSPSC | 39121613 |
| UPC | 78312623805 |
| Used On | Ground Conductor to Pipe |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
