| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | IBC-400L-25BC |
| Additional Information | Applicable Standard W-F-408E, NEMA FB-1; Temperature Rating 150 Deg C |
| Application | For Rigid Conduit And IMC |
| Approval | UL 467, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | O-Z/Gedney |
| Catalog Number | IBC-400L-25BC |
| Commerce Sector | Construction Materials |
| Commodity Code | 22100 |
| Commodity Description | Rigid Conduit Fittings - Steel |
| Conductor Material | Copper |
| Connection | Threaded |
| CountryOfOrigin | MX |
| DDCATEGORY | 121 |
| Diameter | 5-3/16 Inch |
| Directory | CIS |
| Families | 121 |
| Family Description | Rigid Steel Conduit Fittings |
| Finish | Zinc Plated |
| Height | 1-1/16 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 4 IN GNDG INSUL BSHG W/LUG;4IN INS BUSH |
| Item Number | 30628 |

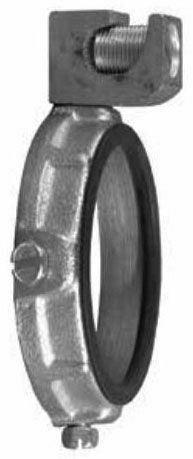

| Long Description | RIGID CONDUIT INSULATED GROUNDING BUSHING, THREADED, SET SCREW TYPE; ZINC PLATED MALLEABLE IRON BODY, ZINC PLATED STEEL SET SCREW, ZINC PLATED STEEL CLAMPING SCREW MATERIAL; 1-1/16 INCH; RIGID CONDUIT/IMC USED ON; 6 AWG TO 250 MCM WIRE SIZE |
| Lug Type | Lay-In, Bright Dip Bronze |
| MSDS Form Number | * |
| Material | Malleable Iron Body, Bronze Lug, Steel Clamping Screw And Set Screws;Zinc Plated Malleable Iron Body, Zinc Plated Steel Set Screw, Zinc Plated Steel Clamping Screw |
| Model | IBC-L-BC |
| Noun | * |
| Product Description | 4IN INS BUSH |
| Product Keywords | WEBREADY |
| Product Name | Electrical bushings |
| ProductLine | OZ-G |
| Size | 4 IN |
| Special Features | O-Z/Gedney malleable iron bushings incorporate a thermoplastic insulator and an aluminum lay-in lug grounding lug; They are used to protect wires and cables at entry and exit of conduit and to provide for grounding of the conduit; Insulating liner material is UL V-O rated (self extinguishing); The plastic liner is tough, it wont chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes; Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Set-screw provided with each fitting locks bushing in any desired position; UL listed for use with copper grounding conductors only; Lugs not sold separately |
| Standard | Third Party Certification: UL File Number E-24264, CSA 009795, Applicable Third Party Standards: UL 467, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1 |
| Temperature Rating | 150 DEG C |
| Throat Type | Insulated |
| Trade Size | 4 Inch |
| Type | Type IBC-L-BC Insulated Grounding Bushing With Lug;Threaded, Set Screw |
| UNSPSC | 39121312 |
| UPC | 78312630628 |
| Used On | Rigid Conduit/IMC |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
| Wire Size | 6 AWG to 250 MCM |
