| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | IBC-400LS-20AC |
| Additional Information | Applicable Standard W-F-408E, NEMA FB-1; Temperature Rating 150 Deg C |
| Application | For Rigid Conduit And IMC |
| Approval | UL 467, CSA C22.2 |
| Base Price | 0.0000 |
| Catalog Number | IBC-400LS-20AC |
| Commerce Sector | Construction Materials |
| Commodity Code | 22100 |
| Commodity Description | Rigid Steel Conduit Fittings |
| Conductor Material | Copper/Aluminum |
| Connection | Set-Screw |
| CountryOfOrigin | MX |
| DDCATEGORY | 121 |
| Diameter | 5-3/16 Inch |
| Directory | CIS |
| Families | 121 |
| Family Description | Rigid Steel Conduit Fittings |
| Finish | Zinc Plated Body, Tin Plated Lug, Zinc Plated Clamping Screw And Set Screws |
| Height | 1-1/16 Inch |

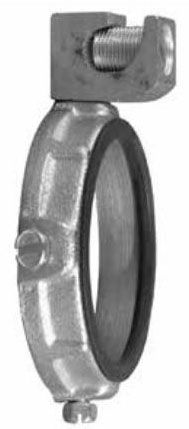

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 4 IN GNDG INSUL BSHG W/LUG;4IN INS BUSH |
| Item Number | 30397 |
| Long Description | RIGID CONDUIT INSULATED GROUNDING BUSHING, THREADLESS SET SCREW TYPE; ZINC PLATED MALLEABLE IRON BODY, ZINC PLATED STEEL SET SCREW, ZINC PLATED STEEL CLAMPING SCREW MATERIAL; 1-1/16 INCH; RIGID CONDUIT/IMC USED ON; 14 TO 2/0 AWG WIRE SIZE |
| Lug Type | Lay-In, Tin Plated Aluminum |
| MSDS Form Number | * |
| Material | Malleable Iron Body, Aluminum Lug, Steel Clamping Screw And Set Screws;Zinc Plated Malleable Iron Body, Zinc Plated Steel Set Screw, Zinc Plated Steel Clamping Screw |
| Model | IBC-LS-AC |
| Noun | * |
| Product Description | 4IN INS BUSH |
| Product Keywords | WEBREADY |
| Product Name | Electrical bushings |
| ProductLine | OZ-G |
| Size | 4 IN |
| Special Features | Insulating liner material is UL V-O rated (self extinguishing);Lugs not sold separately;O-Z/Gedney malleable iron bushings incorporate a thermoplastic insulator and an aluminum lay-in lug grounding lug;Set-screw provided with each fitting locks bushing in any desired position;Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation;The plastic liner is tough, it wont chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes;They are used to protect wires and cables at entry and exit of conduit and to provide for grounding of the conduit;UL listed for use with copper or aluminum grounding conductors |
| Standard | Third Party Certification: UL File Number E-24264, CSA 009795, Applicable Third Party Standards: UL 467, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1 |
| Temperature Rating Maximum | 302 F |
| Temperature Rating Minimum | 302 F |
| Throat Type | Insulated |
| Trade Size | 4 Inch |
| Type | Type IBC-LS-AC Insulated Grounding Bushing With Lug;Threadless Set Screw |
| UNSPSC | 39121312 |
| UPC | 78312630397 |
| Used On | Rigid Conduit/IMC |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
| Wire Size | 14 to 2/0 AWG |
