| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | LB-200 |
| Access Opening | Back |
| Additional Information | Applicable Standard Federal Specification A-A-50563, NEMA FB-1/FB-2.10; Capacity 70 Cu Inch; Application Provides Access to Conductors for Pulling/Splicing/Maintenance and Future Changes/Upgrades, Allows Connection of Straight Conduit Runs/Branch Conduit |
| Application | For Rigid Conduit And IMC |
| Approval | UL 514A, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | O-Z/Gedney;Spec 5[TM] |
| Catalog Number | LB-200 |
| Commerce Sector | Construction Materials |
| Commodity Code | 25110 |
| Commodity Description | Steel Conduit Bodies & Covers |
| Configuration | LB |
| Connection | Tapered FNPT |
| CountryOfOrigin | MX |
| DDCATEGORY | 549 |
| Directory | CIS |
| Families | 549 |
| Family Description | Steel Conduit Bodies & Covers |
| Finish | Aluminum |
| Hub Location | 90 Deg |
| Hub Size | 2 in;2 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | Threaded |
| InvoiceDescription | 2 IN LB IRON COND BDY;2IN MALL LB COND BODY |
| Item Number | 32855 |
| Length | 10-5/8 in |

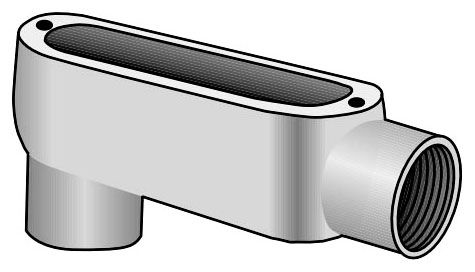

| Long Description | RIGID CONDUIT BODY, ZINC ELECTROPLATED ALUMINUM ENAMELED MALLEABLE IRON MATERIAL; 10-5/8 INCH L X 3-1/4 INCH W SIZE; RIGID CONDUIT/IMC USED ON; 2 INCH HUB SIZE; THREADED INSTALLATION; LB CONFIGURATION; 2 HUB(S); UL 514A, CSA C22.2 APPROVAL |
| MSDS Form Number | * |
| Material | Malleable Iron;Zinc Electroplated Aluminum Enameled Malleable Iron |
| Noun | * |
| Number Of Hubs | 2 |
| Product Description | 2IN MALL LB COND BODY |
| Product Keywords | WEBREADY |
| Product Name | Electrical conduit fitting body |
| ProductLine | OZ-G |
| Size | 10-5/8 Inch L x 3-1/4 Inch W |
| Special Features | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Tapered threaded hubs (NPT); Raintight when used with gasketed covers; Malleable iron suitable for use in concrete; Complete interchangeability with other manufacturers style 5 or 35 conduit bodies; Internal volume and maximum wire capacity clearly marked on castings; Suitable for wet locations when used with gasketed covers |
| Standard | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10 |
| Sub Brand | Spec 5 |
| Type | Type LB Conduit Body |
| UNSPSC | 39131708 |
| UPC | 78312632855 |
| Used On | Rigid Conduit/IMC |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
| Width | 3.25 in |
