| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | LB-50 |
| Access Opening | Back |
| Additional Information | Applicable Standard NEC/CEC, NEMA FB-1 |
| Application | For Rigid Conduit And IMC |
| Approval | UL 514A/B, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Spec 5[TM] |
| Catalog Number | LB-50 |
| Commerce Sector | Construction Materials |
| Commodity Code | 25110 |
| Commodity Description | Steel Conduit Bodies & Covers |
| Configuration | LB |
| Connection | Tapered FNPT |
| CountryOfOrigin | MX |
| Cover Type | Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable/Ductile Iron |
| DDCATEGORY | 549 |
| Directory | CIS |
| Families | 549 |
| Family Description | Steel Conduit Bodies & Covers |
| Finish | Zinc Electroplated With Aluminum Enamel |
| Hub Location | 90 Degree |
| Hub Size | 1/2;1/2 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | Taper Threaded |
| InvoiceDescription | 1/2 IN LB IRON COND BDY;1/2 MALL LB COND BODY |
| Item Number | 32755 |
| Length | 4-5/8 in |
| Long Description | RIGID CONDUIT BODY, ZINC ELECTROPLATED/CHROMATE/EPOXY POWDER COATED MALLEABLE/DUCTILE IRON MATERIAL; 4.63 INCH LENGTH X 2.13 INCH WIDTH SIZE; IMC/RIGID CONDUIT USED ON; 1/2 INCH HUB SIZE; TAPER THREADED INSTALLATION; LB CONFIGURATION; 2 HUB(S) |
| MSDS Form Number | * |
| Material | Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable/Ductile Iron |
| Material Quality | Malleable Iron |
| Noun | * |
| Number Of Hubs | 2 |
| Product Description | 1/2 MALL LB COND BODY |
| Product Keywords | WEBREADY |

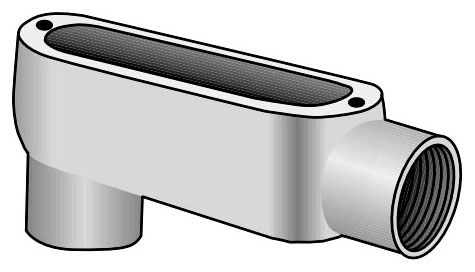

| Product Name | Electrical conduit fitting body |
| ProductLine | OZ-G |
| Size | 4.63 Inch Length x 2.13 Inch Width |
| Special Features | Allow connections for branch runs;Complete interchangeability with other manufacturers style 5 or 35 conduit bodies;Connect and change direction of conduit runs;Internal volume and maximum wire capacity clearly marked on castings;Make bends in conduit system;Malleable iron suitable for use in concrete;Permit access to conductors for maintenance;Provide openings for splicing;Raintight when used with gasketed covers;Serve as pulling fittings;Suitable for wet locations when used with gasketed covers;Tapered threaded hubs (NPT) |
| Standard | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10 |
| Type | Type LB Conduit Body |
| UNSPSC | 39131708 |
| UPC | 78312632755 |
| Used On | IMC/Rigid Conduit |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
| Width | 1-3/8 in |
