| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | LB50ACG |
| Access Opening | Back |
| Additional Information | Applicable Standard Federal Specification A-A-50563, NEMA FB-1/FB-2.10; Capacity 4.3 Cu Inch; Application Provides Access to Conductors for Pulling/Splicing/Maintenance and Future Changes/Upgrades, Allows Connection of Straight Conduit Runs/Branch Conduit |
| Application | For Rigid Conduit And IMC |
| Approval | UL 514A, CSA C22.2 |
| Catalog Number | LB50ACG |
| Commerce Sector | Construction Materials |
| Commodity Code | 25210 |
| Commodity Description | Aluminum Conduit Bodies & Covers |
| Configuration | LB |
| Connection | Tapered FNPT |
| CountryOfOrigin | IN |
| Cover Type | Aluminum |
| DDCATEGORY | 552 |
| Directory | CIS |
| Families | 552 |
| Family Description | Aluminum Conduit Bodies & Covers |
| Finish | Aluminum Enamel |
| Hub Location | 90 Deg |
| Hub Size | 1/2;1/2 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | Threaded |
| InvoiceDescription | 1/2 IN LB BDY/CVR/GSKT ASSY;1/2 COND BODY |
| Item Number | 06232 |
| Length | 4-1/2 in |
| Long Description | RIGID CONDUIT BODY AND COVER, DIE CAST ENAMELED COPPER FREE ALUMINUM BODY, NEOPRENE GASKET MATERIAL; 4-1/2 INCH L X 1-1/4 INCH W SIZE; RIGID CONDUIT/IMC USED ON; 1/2 INCH HUB SIZE; THREADED INSTALLATION; LB CONFIGURATION; 2 HUB(S) |
| MSDS Form Number | * |
| Material | Die Cast Enameled Copper Free Aluminum Body, Neoprene Gasket |
| Material Quality | Conduit Body: Die-Cast, Copper-Free Aluminum, Cover: Type BS Aluminum, Gasket: Type SGN Neoprene |
| Noun | * |
| Number Of Hubs | 2 |
| Product Description | 1/2 COND BODY |
| Product Keywords | WEBREADY |
| Product Name | Electrical conduit fitting body |
| ProductLine | OZ-G |
| Size | 4-1/2 Inch L x 1-1/4 Inch W |
| Special Features | Allow connections for branch runs;Closed-cell neoprene gasket;Connect and change direction of conduit runs;Domed copperfree aluminum cover with stainless steel screws;Internal volume and maximum wire capacity clearly marked on castings;Make bends in conduit system;Permit access to conductors for maintenance;Provide openings for splicing;Raintight when used with gasketed covers;Serve as pulling fittings;Suitable for wet locations;Tapered threaded hubs (NPT) |
| Standard | NEMA : FB-1, FB-2.10;Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563 |

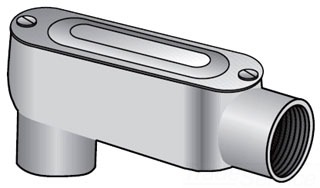

| Type | Type LB Conduit Body, Cover And Gasket Assembly |
| UNSPSC | 39131708 |
| UPC | 78312606232 |
| Used On | Rigid Conduit/IMC |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
| Width | 1-1/4 in |
