| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | LB6X-200MA |
| Access Opening | Back |
| Additional Information | Applicable Standard Federal Specification A-A-50563, NEMA FB-1/FB-2.10; Application Provides Access to Large and Heavy Conductors for Pulling/Splicing/Maintenance and Future Changes/Upgrade, Allows Connection of Straight Conduit Runs, Branch Conduit Runs |
| Application | For Rigid Conduit And IMC |
| Approval | UL 514A, CSA C22.2, NEC |
| Base Price | 0.0000 |
| Brand Name | O-Z/Gedney |
| Capacity | 145 Cu Inch |
| Catalog Number | LB6X-200MA |
| Commerce Sector | Construction Materials |
| Commodity Code | 25210 |
| Commodity Description | Aluminum Conduit Bodies & Covers |
| Configuration | LB |
| Connection | Tapered FNPT |
| Constructional Feature | Hazardous Location, Raintight |
| CountryOfOrigin | MX |
| DDCATEGORY | 552 |
| Directory | CIS |
| Enclosure | Class I Div 2 |
| Families | 552 |
| Family Description | Aluminum Conduit Bodies & Covers |
| Finish | Epoxy Powder Coated |
| Height | 6.31 in |
| Hub Location | 90 Deg |
| Hub Size | 2 in;2 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 2 IN LB MOGUL COND BDY ALUM;2IN AL COND BODY |
| Item Number | 02086 |
| Length | 14.63 in |

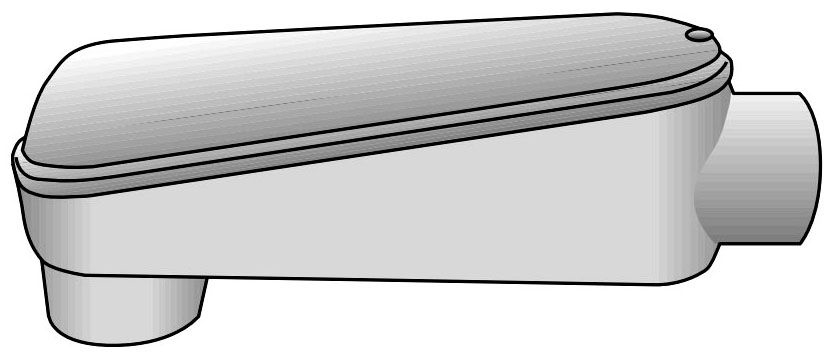

| Long Description | RIGID CONDUIT BODY, COPPER FREE ALUMINUM BODY, NEOPRENE GASKET, STAINLESS STEEL SCREW MATERIAL; 14.63 INCH L X 3.13 INCH W X 6.31 INCH H SIZE; EPOXY POWDER COATED FINISH; 2 INCH HUB SIZE; LB CONFIGURATION; 2 HUB(S); UL 514A, CSA C22.2, NEC APPROVAL |
| MSDS Form Number | * |
| Material | Copper-Free Aluminum;Copper Free Aluminum Body, Neoprene Gasket, Stainless Steel Screw |
| Noun | * |
| Number Of Hubs | 2 |
| Product Description | 2IN AL COND BODY |
| Product Keywords | WEBREADY |
| Product Name | Electrical conduit fitting body |
| ProductLine | OZ-G |
| Size | 14.63 Inch L x 3.13 Inch W x 6.31 Inch H |
| Special Features | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Tapered threaded hubs (NPT); Raintight when used with gasketed covers; Smooth integral hub bushings protect conductor insulation; Suitable for wet locations when used with gasketed covers; Supplied completely assembled with cover, gasket and captive stainless steel screws; Meets NEC section 314.28 rule; Neoprene gaskets; Replacement covers and gaskets available; Supplied with built-in cable-pulling rollers |
| Standard | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10 |
| Type | Type LB Mogul Conduit Body |
| UNSPSC | 39131708 |
| UPC | 78312602086 |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
| Width | 3.13 in |
