| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | LBY-75 |
| Additional Information | Enclosure Type Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group IIA IIB+H2, Class II Div 1 and 2 Group E F G, Class III; Used On Threaded IMC/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard NEC/CEC |
| Application | For Rigid Conduit And IMC |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Bend Angle | 90 Degree |
| Brand Name | O-Z/Gedney |
| Catalog Number | LBY-75 |
| Commerce Sector | Construction Materials |
| Commodity Code | 22100 |
| Commodity Description | Rigid Conduit Fittings - Steel |
| Connection | Tapered FNPT Hub |
| Connection Type | Female |
| CountryOfOrigin | MX |
| DDCATEGORY | 121 |
| Directory | CIS |
| Families | 121 |
| Family Description | Rigid Steel Conduit Fittings |
| Finish | Zinc Electroplated;Zinc Electroplated Chromate Epoxy Powder Coated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 3/4 IN HAZ LOC CAPPED ELB;3/4 90D MALL CAPPED ELL |
| Item Number | 32901 |
| Length | 2-3/8 IN |

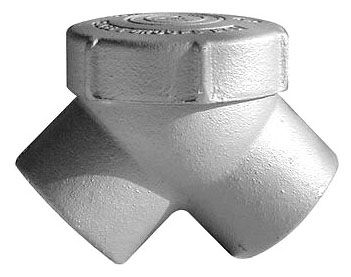

| Long Description | RIGID CONDUIT CAPPED ELBOW, CAPPED, PULLING TYPE; MALLEABLE IRON MATERIAL; ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED FINISH; FEMALE CONNECTION TYPE; UL, CSA APPROVAL; 3/4 INCH TRADE SIZE; 90 DEGREE BEND ANGLE |
| MSDS Form Number | * |
| Material | Malleable Iron |
| Model | LBY |
| Noun | * |
| Product Description | 3/4 90D MALL CAPPED ELL |
| Product Keywords | WEBREADY |
| Product Name | Electrical fittings |
| ProductLine | OZ-G |
| Special Features | Provides a 90 DEG change in direction in hazardous and ordinary locations where accessibility is needed for pulling conductors; Screw-on cover for ease of installation and removal; Cover opens on an angle permitting conductors to be pulled straight through either hub; Can make 90 DEG turns in conduit where a compact turn is desired |
| Standard | Third Party Certification: UL 34997, Hazardous Location: Class I, Division 1, 2, Groups B, C, D, Class I, Zone 1, 2, Groups IIA, IIB + H2, Class II, Division 1, 2, Groups E, F, G, Class III, CSA 009795, Applicable Third Party Standards: UL 514B And 886, CSA C22.2 Number 30, NEC Articles 500-503 And 505, Military Specification Mil-F-28675 |
| Trade Size | 0.75 in;3/4 Inch |
| Type | Type LBY 90 DEG Capped Conduit Short Elbow;Capped, Pulling |
| UNSPSC | 39121311 |
| UPC | 78312632901 |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
