| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | SR-50-375 |
| Additional Information | Construction Features Liquidtight, Oil Tight, Rain Tight; Color White; Throat Inner Diameter 0.53 Inch; Temperature Rating 90 Deg C |
| Application | For Securing And Sealing Cords Or Cables Entering Enclosures Or Raceways;Wet/Hazardous Location |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Grip-Tite[R] |
| Catalog Number | SR-50-375 |
| Color | White |
| Commerce Sector | Construction Materials |
| Commodity Code | 24900 |
| Commodity Description | Cable & Cord Grips |
| Conductor Range | 0.25 - 0.375 |
| Connection | Male NPT |
| Cord Size | 0.25 to 0.375 Inch |
| CountryOfOrigin | MX |
| DDCATEGORY | 130 |
| Directory | CIS |
| Enclosure | NEMA 4 |
| Families | 130 |
| Family Description | Cable & Cord Grips |
| Finish | Zinc Plated Body, Gland Nut And Locknut |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1/2 IN STR STRAIN RLF CONN;1/2 .25-.375 CORDCON |
| Item Number | 50651 |

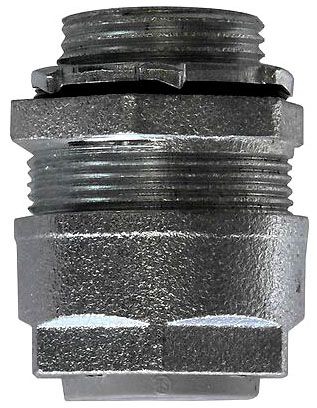

| Long Description | CORD CONNECTOR, STRAIGHT MALE TYPE; ZINC PLATED MALLEABLE IRON (BODY/GLAND NUT), NEOPRENE (GROMMET), NYLON (GRIPPER), PVC/BUNA-N (SEALING RING), ZINC PLATED STEEL (LOCKNUT) MATERIAL; 1-3/8 INCH DIAMETER X 1-1/4 INCH LENGTH SIZE; UL, CSA APPROVAL |
| MSDS Form Number | * |
| Material | Zinc Plated Malleable Iron (Body/Gland Nut), Neoprene (Grommet), Nylon (Gripper), PVC/Buna-N (Sealing Ring), Zinc Plated Steel (Locknut) |
| Material Quality | Malleable Iron Body And Gland Nut, Nylon Gripper, Neoprene Grommet, PVC Or Buna-N Sealing Ring, Steel Locknut |
| Model | SR |
| NEMA Rating | 4 |
| Noun | * |
| Operating Temperature Maximum | 194 F |
| Operating Temperature Minimum | 194 F |
| Product Description | 1/2 .25-.375 CORDCON |
| Product Keywords | WEBREADY |
| Product Name | Cable gland connectors |
| ProductLine | OZ-G |
| Size | 1/2 IN;1-3/8 Inch Diameter x 1-1/4 Inch Length |
| Special Features | Colored gripper allows for easy identification;Furnished complete with sealing ring and locknut;Grip-tite style, 2-piece internal design features a nylon gripper for exceptional pullout protection and a neoprene grommet for a moisture-proof seal (up to 1 IN diameter cord range);Liquidtight/oiltight/raintight;Provide strain relief to protect the cord or cable from pullout;Simple installation, cord can be installed without disassembly of the fitting;Slim diameter profile allows close spacing between connectors;Suitable for NEMA 4 enclosures and other wet locations;UL Listed NEMA 4, 6 and 12 when installed into a NPT threaded entry or UL listed conduit hub (sizes 1-1/4 IN and larger require thread sealant) |
| Standard | Third Party Certification: UL File Number E-11857, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, Suitable for use in Hazardous Locations under NEC Sec. 501-4(b), 502-4(a) (2), and 503-3(a), For Class I, Division 2, Class II, Division 1, 2, and Class III, Division 1, 2 |
| Thread Size | 1/2 Inch |
| Type | Type SR Grip-Tite Strain Relief Straight Connector;Straight Male |
| UNSPSC | 39121431 |
| UPC | 78312650651 |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
Product Detail
