| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | T-50 |
| Access Opening | Side |
| Additional Information | Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1 |
| Application | For Rigid Conduit And IMC |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Capacity | 6 Cubic Inch |
| Catalog Number | T-50 |
| Commerce Sector | Construction Materials |
| Commodity Code | 25110 |
| Commodity Description | Steel Conduit Bodies & Covers |
| Configuration | T |
| Connection | Tapered FNPT |
| Constructional Feature | Explosionproof |
| CountryOfOrigin | MX |
| DDCATEGORY | 549 |
| Directory | CIS |
| Enclosure | Class I Div 2 |
| Families | 549 |
| Family Description | Steel Conduit Bodies & Covers |
| Finish | Zinc Electroplated With Aluminum Enamel;Zinc Electroplated Chromate Epoxy Powder Coated |
| Height | 1-3/8 in |
| Hub Location | Tee |
| Hub Size | 1/2;1/2 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1/2 IN IRON COND BODY TYPE T;1/2 MALL T COND BODY |
| Item Number | 51700 |
| Length | 5-3/8 in |
| Long Description | RIGID CONDUIT BODY, MALLEABLE IRON MATERIAL; 1.75 INCH WIDTH SIZE; ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED FINISH; 1/2 INCH HUB SIZE; T CONFIGURATION; 3 HUB(S); UL, CSA APPROVAL; CLASS I DIV 2 ENCLOSURE; 6 CUBIC INCH CAPACITY; EXPLOSIONPROOF |
| MSDS Form Number | * |
| Material | Malleable Iron |
| Material Quality | Malleable Iron |
| Noun | * |
| Number Of Hubs | 3 |
| Product Description | 1/2 MALL T COND BODY |
| Product Keywords | WEBREADY |

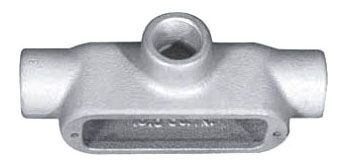

| Product Name | Electrical conduit fitting body |
| ProductLine | OZ-G |
| Size | 1.75 Inch Width |
| Special Features | Allow connections for branch runs;Complete interchangeability with other manufacturers style 5 or 35 conduit bodies;Connect and change direction of conduit runs;Internal volume and maximum wire capacity clearly marked on castings;Make bends in conduit system;Malleable iron suitable for use in concrete;Permit access to conductors for maintenance;Provide openings for splicing;Raintight when used with gasketed covers;Serve as pulling fittings;Tapered threaded hubs |
| Standard | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10 |
| Type | Type T Conduit Body |
| UNSPSC | 39131708 |
| UPC | 78312651700 |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
