| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | TB-75 |
| Access Opening | Back |
| Additional Information | Applicable Standard Federal Specification A-A-50563, NEMA FB-1/FB-2.10; Capacity 7 Cu Inch; Application Provides Access to Conductors for Pulling/Splicing/Maintenance and Future Changes/Upgrades, Allows Connection of Straight Conduit Runs/Branch Conduit R |
| Application | For Rigid Conduit And IMC |
| Approval | UL 514A, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Spec 5[TM] |
| Catalog Number | TB-75 |
| Commerce Sector | Construction Materials |
| Commodity Code | 25400 |
| Commodity Description | Miscellaneous Conduit Bodies |
| Configuration | TB |
| Connection | Tapered FNPT |
| CountryOfOrigin | MX |
| DDCATEGORY | 555 |
| Directory | CIS |
| Families | 555 |
| Family Description | Miscellaneous Conduit Bodies |
| Finish | Zinc Electroplated With Aluminum Enamel |
| Hub Location | Tee |
| Hub Size | 3/4;3/4 Inch |

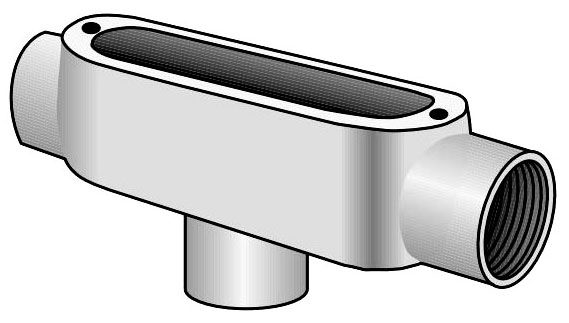

| Image Location | * Image |
| Industry | ELX |
| Installation | Threaded |
| InvoiceDescription | 3/4 IN IRON COND BDY TYPE TB;3/4 MALL TB COND BODY |
| Item Number | 52246 |
| Length | 6-1/4 in |
| Long Description | RIGID CONDUIT BODY, ZINC ELECTROPLATED ALUMINUM ENAMELED MALLEABLE IRON MATERIAL; 6-1/4 INCH L X 1-1/2 INCH W SIZE; RIGID CONDUIT/IMC USED ON; 3/4 INCH HUB SIZE; THREADED INSTALLATION; TB CONFIGURATION; 3 HUB(S); UL 514A, CSA C22.2 APPROVAL |
| MSDS Form Number | * |
| Material | Zinc Electroplated Aluminum Enameled Malleable Iron |
| Material Quality | Malleable Iron |
| Noun | * |
| Number Of Hubs | 3 |
| Product Description | 3/4 MALL TB COND BODY |
| Product Keywords | WEBREADY |
| Product Name | Electrical conduit fitting body |
| ProductLine | OZ-G |
| Size | 6-1/4 Inch L x 1-1/2 Inch W |
| Special Features | Allow connections for branch runs;Complete interchangeability with other manufacturers style 5 or 35 conduit bodies;Connect and change direction of conduit runs;Internal volume and maximum wire capacity clearly marked on castings;Make bends in conduit system;Malleable iron suitable for use in concrete;Permit access to conductors for maintenance;Provide openings for splicing;Raintight when used with gasketed covers;Serve as pulling fittings;Suitable for wet locations when used with gasketed covers;Tapered threaded hubs (NPT) |
| Standard | Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10 |
| Type | Type TB Conduit Body |
| UNSPSC | 39131708 |
| UPC | 78312652246 |
| Used On | Rigid Conduit/IMC |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
| Width | 1-1/2 in |
