| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | TB47 |
| Access Opening | Back |
| Additional Information | Applicable Standard NEMA FB-1; Capacity 20 Cu Inch |
| Application | For Rigid Conduit And IMC |
| Approval | UL 514A/514B, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | O-Z/Gedney;Form 7[TM] |
| Catalog Number | TB47 |
| Color | Gray |
| Commerce Sector | Construction Materials |
| Commodity Code | 25110 |
| Commodity Description | Steel Conduit Bodies & Covers |
| Configuration | TB |
| Connection | Tapered FNPT |
| CountryOfOrigin | MX |
| Cover Type | Zinc Electroplated/Chromate/Epoxy Powder Coated Gray Iron |
| DDCATEGORY | 549 |
| Directory | CIS |
| Families | 549 |
| Family Description | Steel Conduit Bodies & Covers |
| Finish | Aluminum |
| Form | 7 |
| Form Type | Form 7 |
| Height | 3.3125 in |
| Hub Location | Tee Back |
| Hub Size | 1.25 in;1-1/4 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | Threaded |
| InvoiceDescription | 1-1/4 IN FORM7 TB COND BODY;1-1/4 MALL TB COND BODY |
| Item Number | 52268 |
| Length | 7-7/16 in |
| Long Description | RIGID CONDUIT BODY, ZINC ELECTROPLATED/CHROMATE/EPOXY POWDER COATED GRAY IRON (BODY), NEOPRENE (GASKET), STAINLESS STEEL COVER (SCREW) MATERIAL; 7.44 INCH L X 2.19 INCH W X 3.31 INCH H SIZE; RIGID/IMC CONDUIT USED ON; 1-1/4 INCH HUB SIZE |
| MSDS Form Number | * |
| Material | Iron;Zinc Electroplated/Chromate/Epoxy Powder Coated Gray Iron (Body), Neoprene (Gasket), Stainless Steel Cover (Screw) |
| Noun | * |
| Number Of Hubs | 3 |
| Product Description | 1-1/4 MALL TB COND BODY |
| Product Keywords | WEBREADY |

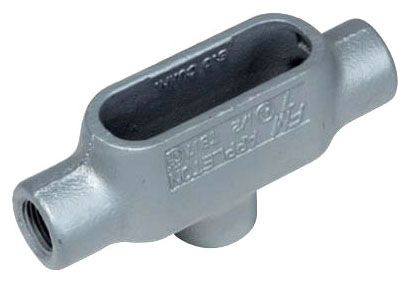

| Product Name | Electrical conduit fitting body |
| ProductLine | OZ-G |
| Size | 7.44 Inch L x 2.19 Inch W x 3.31 Inch H |
| Special Features | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Tapered threaded hubs (NPT); Complete interchangeability with other manufacturers Form 7 conduit bodies; Flat back design for greater wiring capacity and surface mounting; Internal volume and maximum wire capacity clearly marked on castings; Suitable for wet locations when used with gasketed covers; Time-saving clip-on cover |
| Standard | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10 |
| Type | Type TB Conduit Body |
| UNSPSC | 39131708 |
| UPC | 78312652268 |
| Used On | Rigid/IMC Conduit |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
| Width | 2.5 in |
