| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | TB50A |
| Access Opening | Back |
| Additional Information | Capacity 6 Cubic Inch; Applicable Standard NEMA FB-1 |
| Application | For Rigid Conduit And IMC |
| Approval | UL 514A/514B, CSA C22.2 |
| Base Price | 0.0000 |
| Catalog Number | TB50A |
| Commerce Sector | Construction Materials |
| Commodity Code | 25210 |
| Commodity Description | Aluminum Conduit Bodies & Covers |
| Configuration | TB |
| Connection | Tapered FNPT |
| CountryOfOrigin | MX |
| Cover Type | Aluminum/Malleable Iron/Steel |
| DDCATEGORY | 552 |
| Directory | CIS |
| Families | 552 |
| Family Description | Aluminum Conduit Bodies & Covers |
| Finish | Aluminum Enamel |
| Form Type | Form 85 |
| Hub Location | Tee Back |
| Hub Size | 1/2;1/2 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | Threaded |
| InvoiceDescription | 1/2 IN ALUM TB COND BODY;1/2 ALUM TB COND BODY |
| Item Number | 52237 |
| Length | 5-1/4 in |

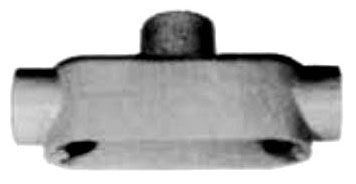

| Long Description | RIGID CONDUIT BODY, EPOXY POWDER COATED PRESSURE CAST COPPER FREE ALUMINUM MATERIAL; 4.75 INCH LENGTH X 1.31 INCH WIDTH X 1.38 INCH HEIGHT SIZE; RIGID/IMC CONDUIT USED ON; 1/2 INCH HUB SIZE; THREADED INSTALLATION; TB CONFIGURATION; 3 HUB(S) |
| MSDS Form Number | * |
| Material | Epoxy Powder Coated Pressure Cast Copper Free Aluminum |
| Material Quality | Sand-Cast Copper-Free Aluminum |
| Noun | * |
| Number Of Hubs | 3 |
| Product Description | 1/2 ALUM TB COND BODY |
| Product Keywords | WEBREADY |
| Product Name | Electrical conduit fitting body |
| ProductLine | OZ-G |
| Size | 4.75 Inch Length x 1.31 Inch Width x 1.38 Inch Height |
| Special Features | Allow connections for branch runs;Connect and change direction of conduit runs;Internal volume and maximum wire capacity clearly marked on castings;Make bends in conduit system;Permit access to conductors for maintenance;Provide openings for splicing;Raintight when used with gasketed covers;Serve as pulling fittings;Suitable for wet locations when used with gasketed covers;Tapered threaded hubs (NPT) |
| Standard | Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10 |
| Type | Type TB Conduit Body |
| UNSPSC | 39131708 |
| UPC | 78312652237 |
| Used On | Rigid/IMC Conduit |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
| Width | 1-1/4 in |
